IEC60811 Cable Testing Equipment Dumble Test Pieces Preparing Machine 16.7 m / min

IEC60811 Cable Testing Equipment Dumble Test Pieces Preparing Machine 16.7 m / min

Brand Name:	HongCe
Model Number:	HCDP190
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Product Name:

Dumble Test Pieces Preparing Machine

Warranty:

1 Year

Power:

AC 220V 50HZ

Standard:

IEC 60811

Application:

Prepare The Dumbbell Test Piece

Maximum Face Width:

190mm

Cutting Speed:

16.7 M / Min

Slice Thickness:

0.6-3mm

Packaging Details:

Plywood

Highlight:

IEC 60811 Cable Testing Equipment

16.7m/min Cable Testing Equipment

190mm Dumbbell Pieces Preparing Machine

Product Description

IEC60811 Cable Testing Equipment Dumble Test Pieces Preparing Machine 16.7 m / min

Product information: The test device conforms to IEC60811-1-1:2001,IEC60811-1-3:2001,IEC60811-2-1:2001, and etc. It is used to prepare the dumbbell Test Piece. Cable Testing Equipment

The IEC 60811 series specifies the test methods to be used for testing rubber, insulation or coating material, non-metallic materials of all types of cables. These test methods are intended to be referenced in standards for cable construction and for cable materials.

It is required to equip with various dumbbell cutter according to the needs for cutting piece. Cable Testing Equipment

Feature:This machine adopts the light roller to control the thickness of the chip, the light roller feeds the material, and the tool performs the chipping. The device can prepare a variety of cable samples, has a compact appearance, and is easy to use and operate.

Dumbbell cutter specifications:

Maximum face width	190mm
Cutting speed	16.7 m / min(up and down roller: rotation speed 110 circles / min)
Pressure roller adjustment range (maximum feed thickness)	0 -15mm
Slice thickness	0.6-3mm
Power supply	220V 50Hz

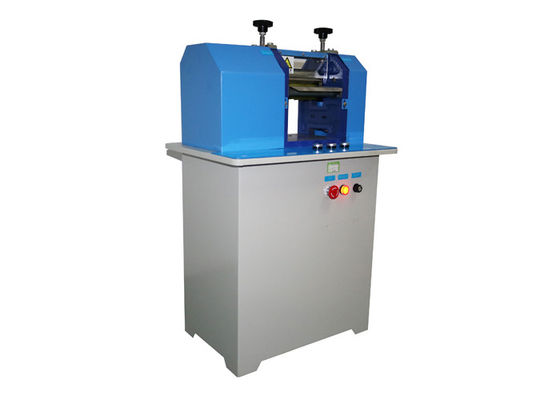

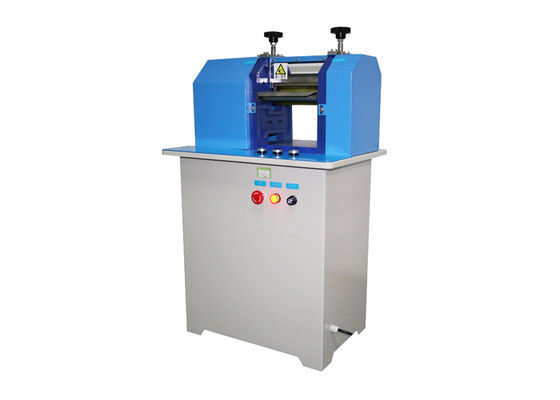

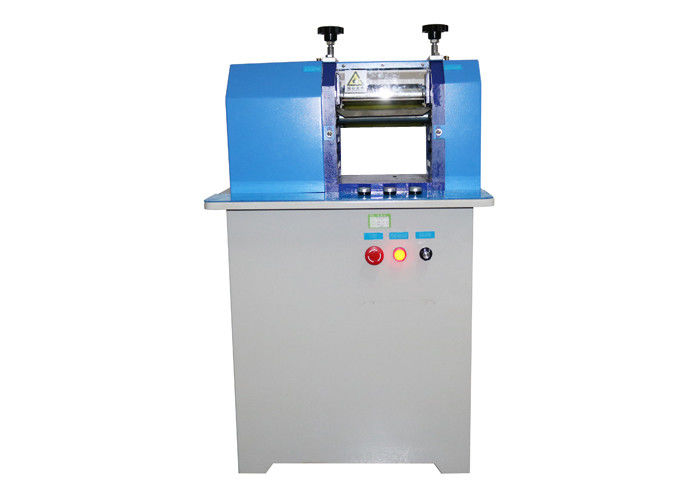

Picture for reference: Cable Testing Equipment
