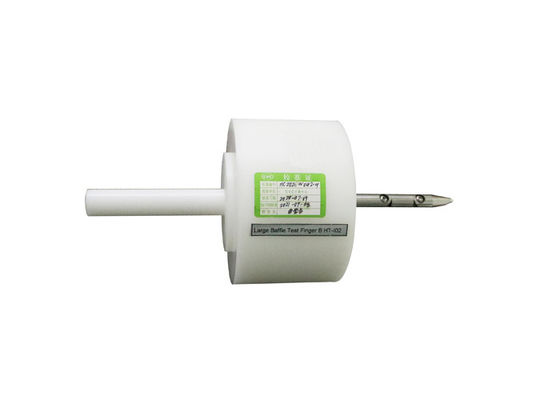

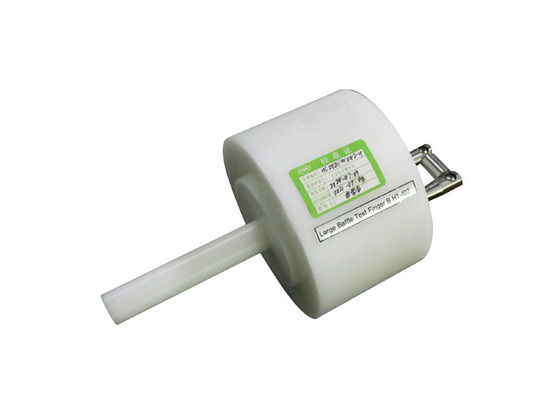

Figure 2 IEC 61032 Test Finger Probe B With Baffle Diameter 125mm

Brand Name:	HongCe
Model Number:	HT-I02B
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Product Name:

Large Baffle Test Finger B

Warranty:

1 Year

Usage:

Verify The Basic Protection

Standard:

IEC60335-2-14, IEC 61032 Figure 2 Etc.

Baffle Diameter:

Ф125

Finger Length:

100

Baffle Thickness:

Guard Diameter:

Packaging Details:

Carton box

Highlight:

125mm Baffle Test Finger Probe

IEC 61032 Test Finger Probe

Product Description

IEC60335-2-14 Large Baffle Test Finger Probe B With Baffle Diameter 125 mm

Standard: IEC60335-2-14 IEC 61032 figure 2, IEC60950 figure 2A, IEC60884, UL507, and UL1278 figure 8.4.

Application: This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. Test Finger Probe

Test sample: Easily accessible enclosure live parts or mechanical parts.

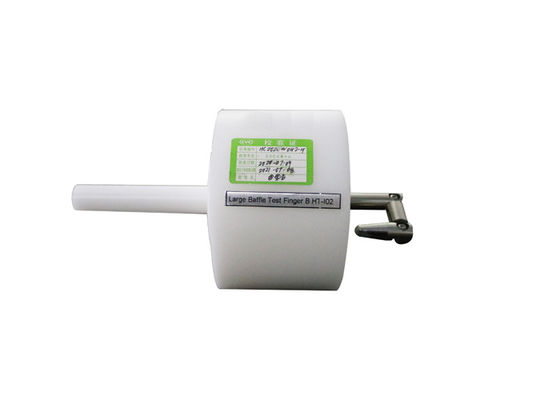

Feature: This test finger probe consists of dito, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°. Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). Test Finger Probe

Parameters(mm):

Model	HT-I02B
Name	Large Baffle Test Finger B
Joint 1	30
Joint 2	60
Finger length	100
Baffle diameter	Ф125
Baffle thickness	80
Guard diameter	75
