IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test

IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test

IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test
IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test
IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HJ0636
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Product Name: Washing Machine Door Performance Tester Warranty: 1 Year
Power Supply: 220V 50Hz Application: Electrical Appliance
Standard: IEC 60335-2-7, IEC 60335-2-11 Etc. Control: Advanced PLC
Open Angle: Side Manipulator 0-180°, Upper Manipulator -30-90° Auxiliary Mechanism: 0-50mm Stroke Adjustable
High Light:

IEC 60335-2-7 Electrical Appliance Tester

,

PLC Electrical Appliance Tester

IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test



Standard: IEC 60335-2-7 household and similar electrical appliances – safety: part 2-7:particular requirements for washing machines, clause 20.101; IEC 60335-2-11 household and similar electrical appliances – safety: part 2-11:particular requirements for tumble dryers, clause 20.101.

Application: The device is used for mechanical endurance test to doors of washing machine and tumble dryer.

Test sample: Washing machine, tumble dryer

Feature: The device uses the MITSUBISHI PLC control, 7 inch color touch screen operation. Built in voltage regulator, can guarantee the rated voltage input. The equipment is composed of an electric control cabinet, a sample holder and two mechanical hand mounted on the sample holder (step motor drive). The machine frame is made of high grade aluminum alloy profile, and the mechanical hand is respectively installed on the beam and the supporting column of the frame, can satisfy left open door and the upper door test to different sizes washing machine.

Test Project:



IEC 60335-2-11 clause 20.101

Test equipment for locking means (similar to an endurance test), capable to energized and de-energized 6 000 times, six times a minute or at the rate imposed by the construction of the appliance if this is lower.



Tumble washing machine door opening/ close endurance test:: Test 1: the door can not open or the interlocking device cut off the power supply when open to 75mm, and when open >75mm, the tumble washing machine / dryer can not start. Test 2: Supply rated voltage to the test sample, then open /close the door 6000 times.



IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test 0



Parameters:



Control advanced PLC
Display true color liquid crystal display (7 Inch Touch screen)
Frame structure High grade aluminum profile
Power supply AC 220V 50HZ
Manipulator Two, side manipulator and upper manipulator. Replaceable vacuum suction and gripping device.
Auxiliary mechanism 0-50mm stroke adjustable
Floor adjustment mechanism to adjust the sample level, tilt
Test times 0-999999 preset, automatic stop when test time finished
Open/Close time 0-9999S preset
Open/Close rate Adjustable
Open angle Side manipulator 0-180°, upper manipulator -30-90°
Station Two station(left open and upper open)





Picture view:

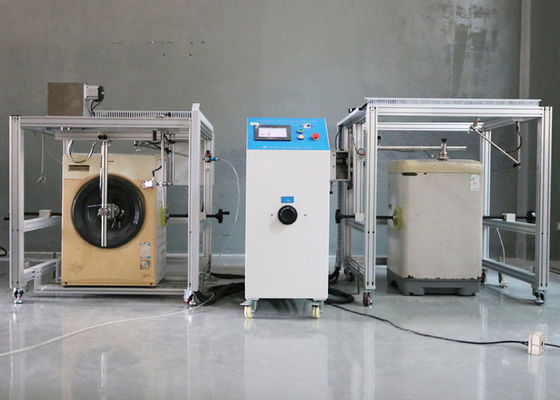

IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test 1

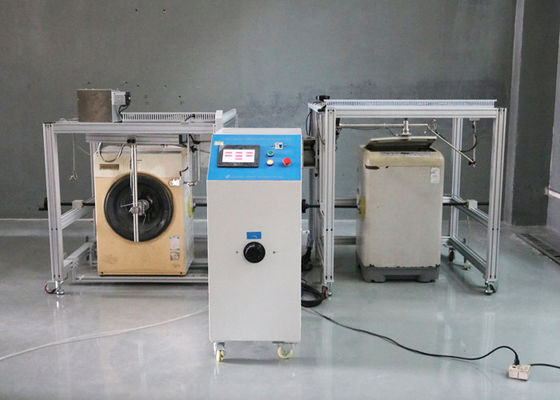

IEC 60335-2-7 Electrical Appliance Tester For Washing Machine Door Endurance Test 2
