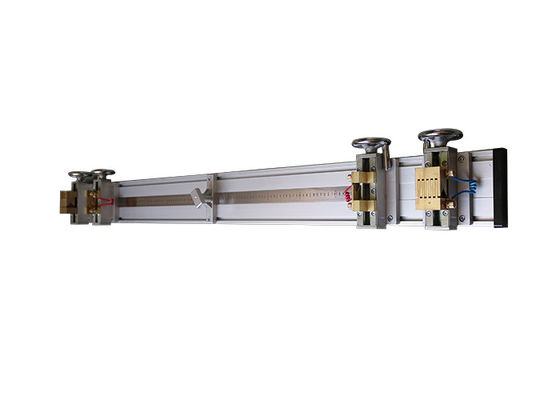

IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture

IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture
IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture

Large Image :  IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HDX1301

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Detailed Product Description
Name: Universal Conductor Resistance Fixture Standard: IEC60245
Warranty: 1 Year Sample Length: 100~1000mm
Dimensions: 1530 × 210 × 150mm Adapting Electrical Bridge: QJ84 Double Bridge Etc., Optional
Application: Cable Testing Equipment Material Of Clamp: Copper
High Light:

IEC 60245 Cable Testing Equipment

,

1000mm Cable Testing Equipment

IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture



Standard:IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Application:Applicable to the DC resistance measurement of variety of power cables and electrical equipment, wire and cable equipment specified in "Test methods for electrical properties of electric cables and wires" , it can also be used for DC resistance measurement of other conductor materials.

Test sample:1mm² ~ 630mm² Single or multi-stand conductor and core of power cable.

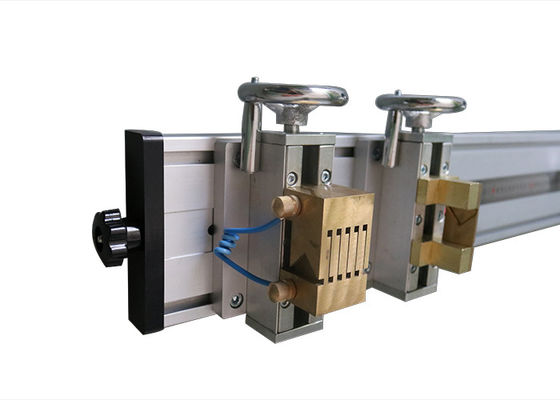

Feature:It adopts the fast clamp and withdraw structure by using positive and negative threaded rod, and the voltage and the current clamp are separated to improve the contact point of the sample. Aluminum alloy base plate, copper clamp.



Parameters:

The distance of clamping head between two voltage 100~1000mm
Dimensions 1530 × 210 × 150mm
Adapting electrical bridge QJ84 double bridge, Optional.





Picture view:

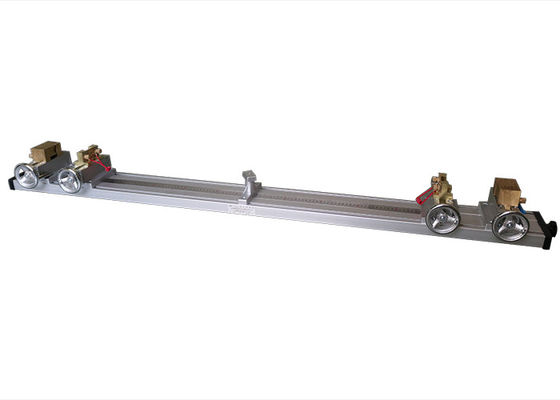

IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture 0

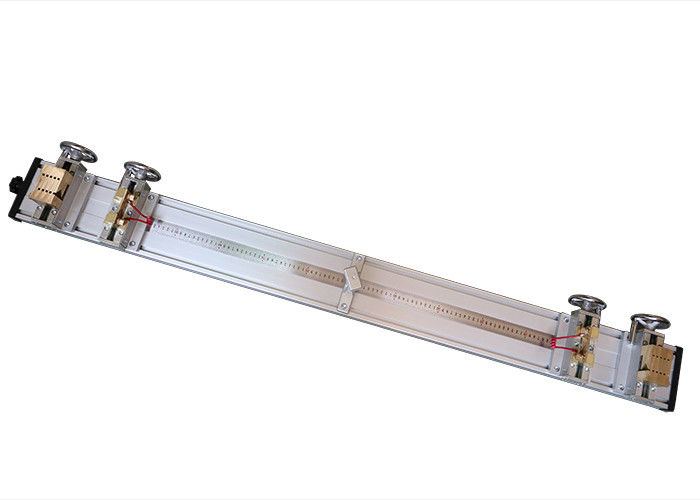

IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture 1

IEC60245 Cable Testing Equipment Universal Conductor Resistance Fixture 2
