Household Appliance Supply Cord Flexing Test Apparatus With One Station

Household Appliance Supply Cord Flexing Test Apparatus With One Station

Brand Name:	HongCe
Model Number:	HJ0608A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Drive Mode:

Electronic

Standard:

IEC60335-1

Input Power:

AC220V 50HZ

Control Method:

PLC Control

Station:

One

Flexing Angle:

0-360°

Flexing Speed:

0-60cycles/min, Can Be Preset

Loading Weight:

5N,10N

Packaging Details:

Plywood

Highlight:

PLC Control Electrical Appliance Tester

IEC60335-1 Electrical Appliance Tester

Product Description

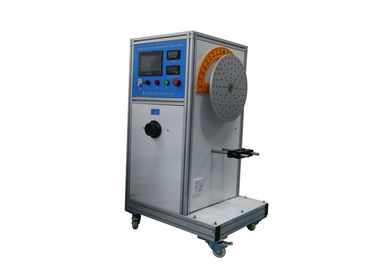

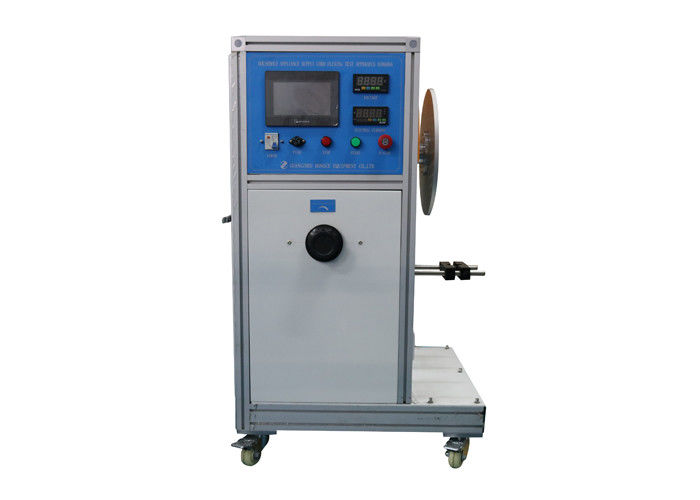

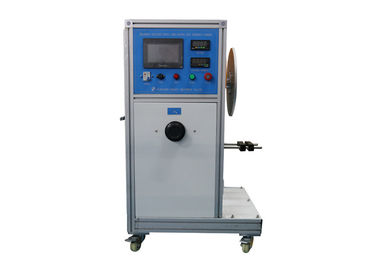

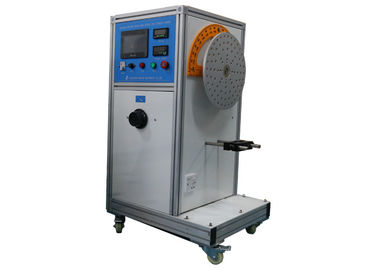

PLC Control Electrical Appliance Tester Household Appliance Supply Cord Flexing Test Apparatus With One Station

Product information:

The Household Appliance Supply Cord Flexing Test Apparatus is special designed and manufactured according to IEC60335-1 clause 25.14, it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron) and lamps, also applicable for power cord flexing endurance tester of plugs and sockets.

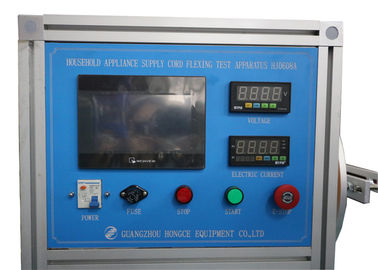

The device is controlled by PLC and operated by 7-inch color human-machine interface. The bending angle, the number of tests and the test rate can be preset. The test is automatically carried out according to the start-up test. When the test reaches the preset number of times, the device automatically stops and gives the test completion signal prompt. The built-in load of the device, can also supply load current to test sample. Electrical Appliance Tester

Standard: Clause 23.3 and 25.14 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC60335-2-14 and etc.

Application: It is used to check that the supply cord of the small household appliances (such as Coffee pot / electric iron) and lamps is adequately protected against excessive flexing where it enters the appliance.

Test sample: Small household appliances, such as coffee pot, electric iron, toaster, luminaires and etc.

Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage and etc. can be preset.

Parameters:

Parameters / Model	HJ0608	HJ0608A	HJ0608B
Input Power	AC220V 50HZ	AC220V 50HZ	AC220V 50HZ
Control Method	Electrical control, buttons operation	PLC control, touch screen operation	PLC control, touch screen operation
Station	One	One	3 (can upgrade to 6 stations),synchronous
Drive Mode	Electrical	Electrical	Electrical
Flexing Angle	Unilateral 45°,60°,90°, mechanical adjustable	0-360°, preset on the touch screen	0-360°, preset on the touch screen
Flexing Speed	0-60cycles/min, frequency control	0-60cycles/min, can be preset	0-60cycles/min, can be preset
Test Cycles	0-999999, can be preset	0-999999, can be preset	0-999999, can be preset
Loading Weight	5N,10N	5N,10N	5N,10N
Loading Voltage	0-250V, can be regulated	0-250V, can be regulated	-
Sample judgment	Judge the conduction by current	Judge the conduction by current	Judge the conduction by current

Household Appliance Supply Cord Flexing Test Apparatus With One Station 0
