Three Stations IEC60811-1-4 Cable Testing Equipment

Three Stations IEC60811-1-4 Cable Testing Equipment

Brand Name:	HongCe
Model Number:	HDX1308
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Product Name:

Cold Elongation Test Equipment

Warranty:

1 Year

Supply Voltage:

220V(AC)

Standard:

IEC60811-1-4

Tensile Speed:

（25±5）mm/min

Station:

Packaging Details:

Plywood

Highlight:

Cold Elongation Test Equipment

3 Station Cable Testing machine

Product Description

IEC60811-1-4 Cable Testing Equipment Cold Elongation Test Equipment Three Stations

Standard:IEC60811-1-4 clause 8.3 and 8.4, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4: Methods for general application-Test at low temperature.

Application:It is used to test at low temperature for insulating and sheathing materials of electric cables.

Test sample:Rubber, insulating and sheathing materials of electric cables.

Parameters:

Item name	Parameter data	Item name	Parameter data
Supply voltage	220V(AC)	Displacement measurement	Digital display±1mm
Chuck type	Non self energizing	Tensile speed	(25±5)mm/min
Sample size	Ⅰ#,Ⅱ#Dumbbell piece	samples can bedone in a single operation	3 PCS

Feature:Adopt separation structure of control cabinet and the mechanical device, three stations synchronization, motor drive.

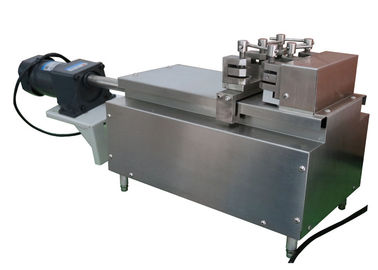

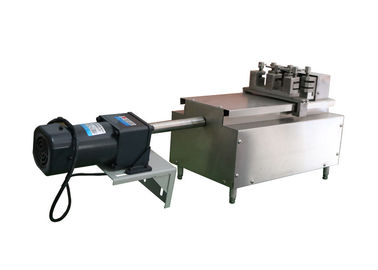

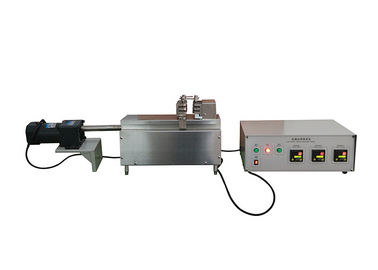

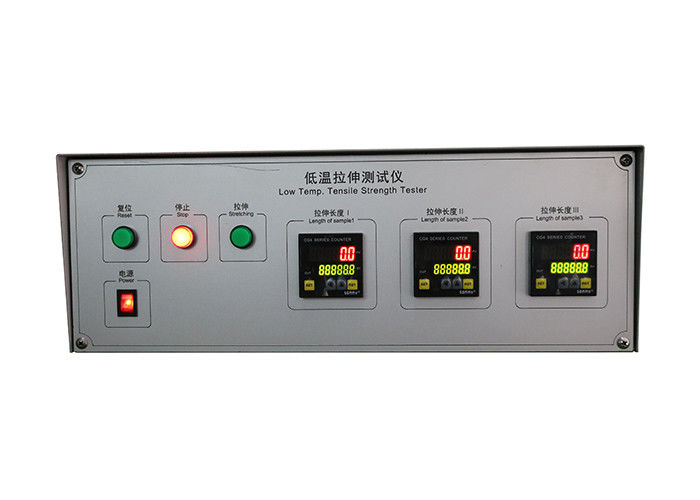

Picture view:
