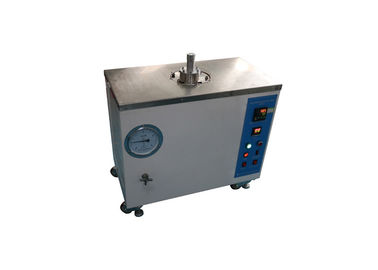

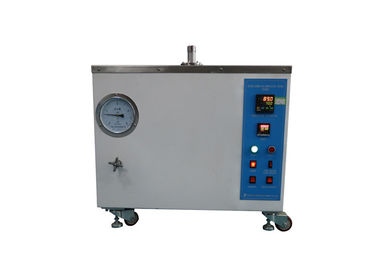

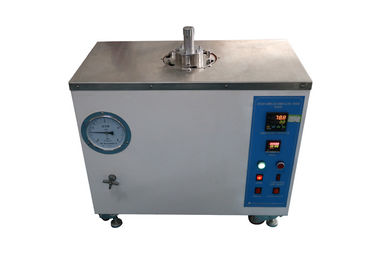

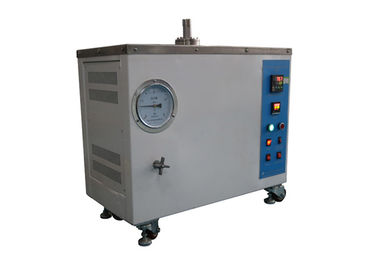

Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank

Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank
Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank

Large Image :  Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank

Product Details:

Place of Origin: Chnia
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HJ0606

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 set per month
Detailed Product Description
Tank Volume: 4000cm3 Maximum Working Pressure: 4MP/cm2
Heater Power: 2.4KW Tank Material: Stainless Steel
High Light:

material testing equipment

,

electric wire tester

Oxygen/Air Bomb Aging Test Chamber HJ0606



Standard:

IEC60811-1-2 Common test methods for insulating and sheathing materials of electric cables Part 1: Methods for general application Section Two - Thermal ageing methods clause 8.2 and 8.3, IEC60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 22.32,  and IEC60245-2 Rubber insulated cables - Rated voltages up to and including 450/750 V - Part 2: Test methods etc.



Application:

It is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber (plastic, leather) insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure and temperature.



Test sample:

Wires, cables, rubber (plastic, leather) insulation layer and sheath, as well as other polymer materials.



Features:

The test device is composed of stainless steel tank container, electrical control cabinet.

1. The tank consists of outside enclosure, insulation layer, heater, temperature aluminum cover, stainless steel pressure tank, the sample tray, automatic overpressure protection devices and other components.

2. The electrical control cabinet mainly consists of outside cabinet, power distribution box and gas distribution chassis.



Parameter:



Parameters Name Parameter Data Parameters Name Parameter Data
Power AC 220V±10%, 50Hz Tank volume 4000cm3
Maximum Working Pressure 4MP/cm2 Heater power 2.4KW
Security Burst Pressure 2.7-3.3MP/cm2 Temperature Deviation ±1℃
Temperature self-control range

Room temperature

0-200℃

Temperature control Digital display automatic control
Dimensions 820×420×670mm Tank materials Stainless steel



Test conditions:

1. The materials which have different substantially compositions should not be tested simultaneously.

2. The sample should not contact the tank wall, and the samples should not contact each other.

3. The sample volume should be less than 1/10 of the tank’s effective volume.

4. Oxygen should be no less than 97% purity industrial oxygen, air should be no oil, non-moist (The air compressor is supplied by the user).



Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank 0



Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank 1Oxygen / Air Bomb Aging Test Chamber Cable Testing Equipment Easy Operation Stainless Steel Test Tank 2
