|Place of Origin:||China|
|Certification:||calibration certificate (cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||30 days|
|Supply Ability:||10 set /month|
|Flexing Angle:||0-360°. Can Be Preset||Flexing Speed:||0~60 Rpm, Can Be Preset|
|Control:||PLC Programmable Control||Drive:||Servo Motor|
|Configuration:||0~4KW||Test Station:||1 Station|
IEC 60745 Electrical Appliance Tester,
4KW Electrical Appliance Tester

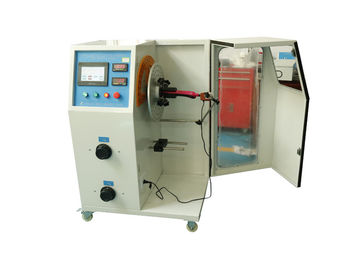

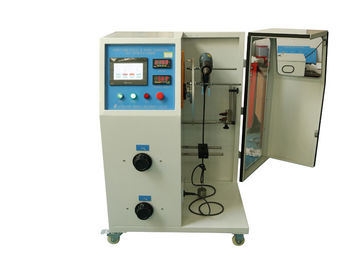

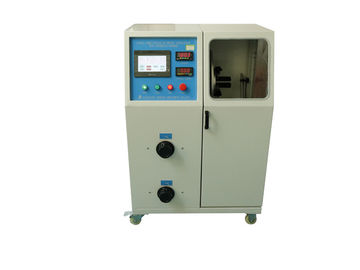

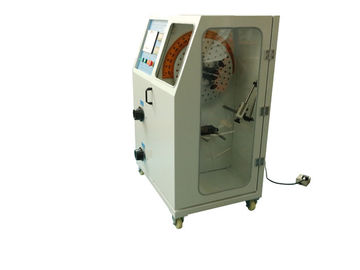

IEC60335 and IEC60745 Household Appliance Supply Cord Flexing PLC Control 4KW With Safety Cage Tester
The power cord flexibility performance tester is special designed and manufactured according to IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23 and etc., it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as coffee pot / electric iron), applicable for power cord flexing endurance tester of plugs and sockets, and also used to examine the temperature rise performance of the rotary joint of the hair & skin care apparatus after a continuous rotating operation.
The test device adopts to PLC electrical control, 7-inch color touch screen intelligent operation system; servo motor controlling the test angle, high precision digital instrument, high performance digital frequency conversion, precise speed regulation, six number memory timer, multifunctional combined clamps, center gauge of rotation, bending angle adjustable, 4kw output power, can also supply load current to test sample (1.25 times of test sample’s rated current). Test times (maximum of 999999 times), test speed, and test angles can be preset; it has electric current detection function. This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.
Test sample: IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23.
Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage and etc. can be preset. Easy operation and suitable for various test objects.
|Flexing or swivel angle||0-360°. Can be preset|
|Flexing or swivel speed||0~60 rpm, can be preset|
|Test times||0~999999 times, can be preset and displayed|
|Control||PLC programmable control|
|Operation||7” Touch screen intelligent operation|
|Max. output power||5KW|
|Output voltage||0~250V adjustable|
|Max. output current||16A|
|Max. carrying capacity||15kg|
|Test station||1 station|
Universal fixtures for small house appliances, 1 set
Universal fixtures for skin & hair care appliances, 1 set
|Temperature Measuring||Hand-held infrared thermometer, -50°C~750°C|
|Load weights||1N*1, 5N*1,10N*1,20N*1|
|Standards||IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23|
