Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335 Adjustable

Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335  Adjustable
Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335  Adjustable Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335  Adjustable

Large Image :  Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335 Adjustable

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HJ0641

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set /month
Detailed Product Description
Standard: IEC60335-2-5 Control: PLC
Load Voltage: AC 0-250V Door Open /close Angle: 0-100°
Door Open /close Speed: 0-360°/s Robot Arm And Door Connection: Vacuum Suction Cup
High Light:

portable appliance testing equipment

,

portable appliance tester

IEC60335-2-5 Dishwasher Internal Wiring PLC Control Single Station Flexible Tester With Load Voltage Adjustable

Product information

The tester is designed and manufactured according to IEC 60335-2-5 household and similar electrical appliances – safety: part 2-5: particular requirements for dishwashers, clause 23.3; EN 60335-2-7 clause 23.3; IEC 60335-1 clause 23.3, It is used to test whether the internal wiring of the dishwasher door has sufficient bending resistance under the action of the repeated opening and closing door, or whether the protective layer is sufficient to resist the interference of the relative movement of other components without damage to verify the reliability of the internal wiring; Used to assist other tests for repeated door opening and closing actions.



Test principle

The edited program is used to control the robot arm driven by the motor to drive the door or the lid sucked by the vacuum suction cup to reciprocate at a certain speed, thereby verifying the reliability of the internal wiring.



Test sample

Electric dishwasher, (single phase ≦ 250V), Maximum sample size allowed WDH=600*600*850mm



Structure

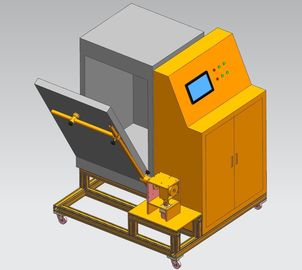

The equipment consists of an electrical control cabinet (including load voltage regulator), a frame and a robot arm mounted on the frame.

Equipment dimensions: about: 1500 × 1300 × 1300 (mm) W × D × H

Equipment weight: 180kg



Performance parameters :

Test station Single station
Electrical control mode PLC programmable control, 7-inch color LCD touch screen
Driving mode Servo motor
Sample clamping method Aluminum profile bracket, mechanical adjustment screw positioning
Robot arm and door connection Vacuum suction cup
Door open /close speed 0-360°/s , can be preset
Door open /close angle 0-100°,can be preset
Flexible rate 30 per minute, can be preset
Test times 0-999999 times, can be preset and displayed
Alarm Power failure alarm and record the current test times
Load voltage AC 0-250V, adjustable; external DC port
Auxiliary action mechanism Dishwasher door lock starting mechanism
Safety protection device
Power Leakage protection, overload and short circuit protection
Motor Overload and short circuit protection



Use environment

Power supply: AC220V±10%/50-60Hz, power 6KW

Air source: 0.5-0.7MPa compressed air

Use place: atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation.

Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335  Adjustable 0

Dishwasher Internal Wiring Single Station Flexible Tester Load Voltage IEC60335  Adjustable 1
