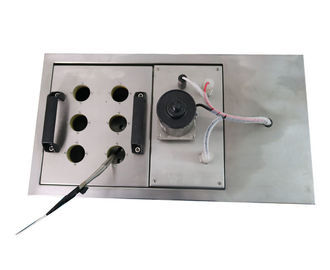

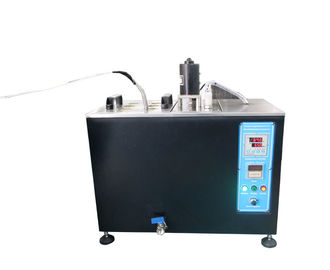

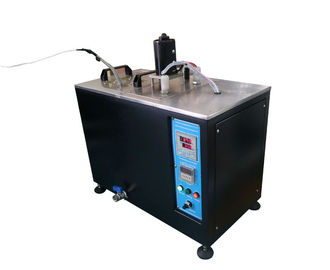

3000W Mineral Oil Immersion Test Apparatus Six Groups Working Stations

Brand Name:	HongCe
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Quartz Tube:

ф38mm, Depth 250mm

Oil Tank Size:

350 × 350 × 300mm (LxWxH), Stainless Steel

Work Stations:

Six Groups

Pipe Plug:

Corrosion Resistant And Temperature Resistant Glue (tight Plug)

Built-in Mixing Cycle Mode, Mixing Motor Power:

100W

Heater: Solenoid Heater, Power:

3000W

Packaging Details:

Plywood

Highlight:

material testing equipment

electric wire tester

Product Description

IEC 60811-2-1 Mineral Oil Immersion Test Apparatus

Products Introduction

This apparatus conforms to IEC 60811-2-1, IEC 60811-404. It is suitable for oil resistance test of enameled wire or insulation made of rubber and plastic. Test method: The test piece is immersed in hot oil for a period of time and then the test piece is taken out to test the tensile strength.

Technical Parameters

Quartz tube: ф38mm, depth 250mm;

Oil tank size: 350 × 350 × 300mm (LxWxH), stainless steel;

Work stations: six groups;

Pipe plug: corrosion resistant and temperature resistant glue (tight plug);

Built-in mixing cycle mode, mixing motor power: 100W.

Temperature control and insulation system:

Adopt intelligent P.I.D thermostat and adopt high precision PT100 platinum thermal resistance;

Heater: solenoid heater, power: 3000W;

Temperature range: room temperature to 300 ° C, meter display accuracy: 0.1 ° C, oil temperature uniformity within ± 2 ° C;

With ultra-high temperature protection function, it can automatically cut off and stop heating after over-temperature, which can effectively protect equipment safety;

Time setting: 9999M/H/D.
