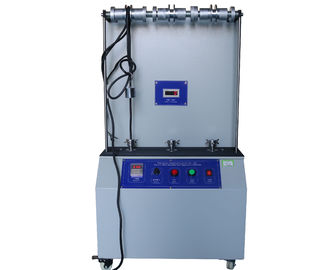

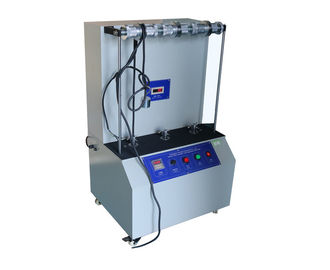

3 Working Station Cable Testing Equipment ， Electric Wire Abrasion Test Apparatus

3 Working Station Cable Testing Equipment ， Electric Wire Abrasion Test Apparatus

Brand Name:	HongCe
Model Number:	HDX1304
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Fixed Shaft Diameter:

Φ40±0.3mm

Test Rate:

Single Strokes 40±1 Times/minute

Test Stroke:

0.1mm Up-and-down Movement

Working Station:

Weight:

500±5g*3

Counter:

0~999999 (can Be Preset)

Packaging Details:

Plywood

Highlight:

material testing equipment

electric wire tester

Product Description

Products Introduction:

This apparatus conforms to IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.3 and Figure 3 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

It is used for checking the wear resistance test of the completed flexible cables.

Technical Parameters:

Power supply	AC230V 50Hz
Fixed shaft diameter	Φ40±0.3mm
Test rate	Single strokes 40±1 times/minute
Test stroke	0.1mm up-and-down movement
Working station	3
Weight	500±5g*3
Counter	0~999999 (can be preset)
Dimension	1200×400×1400 (mm)

Test method:

1. This test shall be made on three pairs of samples of flexible cable, each sample having a length of about 1m.

2. In each pair one sample shall be wound so as to give nearly two turns on a fixed reel having a diameter of 40mm at the bottom of the groove as shown in figure 3, the distance between the flanges of the reel being such that the turns are in close contact with each other. The sample shall then be fixed to prevent any movement relative to the reel.

3. The other sample shall be placed in the groove formed by the turns and a weight having a mass of 500g shall be attached to one end.

4. The other end shall be moved up and down over a distance of 0.1m, at a rate of about 40 single strokes per minute.

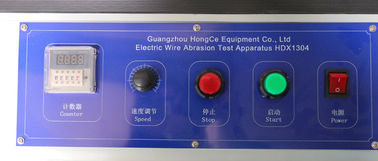

Panel function:

[Counter]: Set the total test times required according to the test requirements. When the test times reaches the set value, the equipment automatically stop test.

[Speed regulation]: Adjust the motor speed, that is, adjust the movement speed of the movable clamp.

[Stop]: Press this button to stop the test.

[Start]: Press this button to start the test.

[Power]: Turn on and off the working power of this machine.

Note:

1. After the end of use, reset the movable clamp and turn off the power. Always refuel the screw section and keep it lubricated. Do not place metal and hard objects on the equipment casing.

2. The equipment should be inspected regularly and the loose screws and nuts should be tightened to ensure the good operation of the equipment.

3. Work environment must be clean, please keep away from corrosive items.
