IEC60245-1 Static Flexibility Tester For Checking Mechanical Strength Of Completed Flexible Cables

Brand Name:	HongCe
Model Number:	HDX1303
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

A, B Clamping Head Initial Distance:

200mm

A And B, Shall Be Located At A Height Above Ground Level:

At Least 1.5m

Sample Length:

3±0.05m

The Cable Being Turned In The Clamp:

180°

Number Of Testing Times:

Standard:

IEC60245-1

Packaging Details:

Plywood

Highlight:

material testing equipment

electric wire tester

Product Description

IEC60245-1 Static Flexibility Tester

Product Introduction:

This apparatus conforms to IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.2 and Figure 2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

It is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm² and cables having more than 18 cores laid up in more than two concentric layers.

Technical Parameters:

A, B clamping head initial distance	200mm
A and B, shall be located at a height above ground level	At least 1.5m
Sample length	3±0.05m
The cable being turned in the clamp	180°
Number of testing times	2

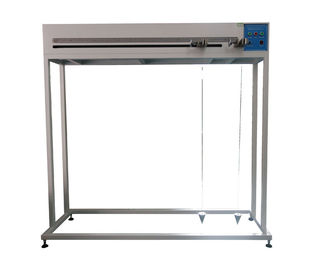

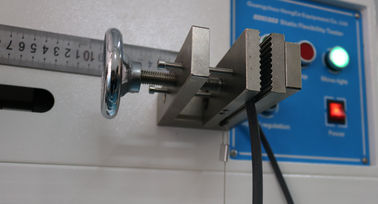

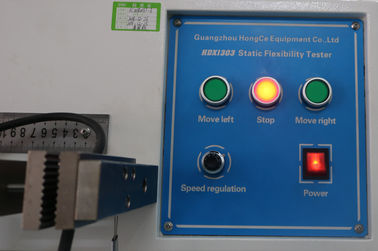

Picture For Reference:
