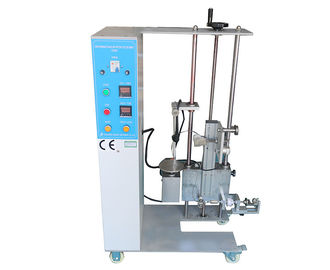

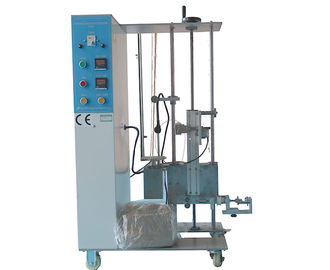

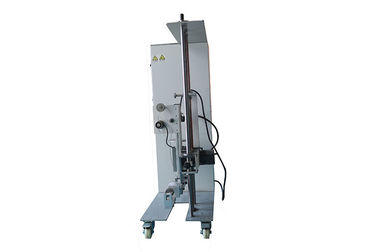

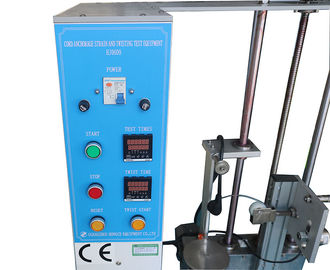

Cord Anchorage Strain and Twisting Test Equipment Torque Arm 20mm IEC60335-1 Clause 25.15

Cord Anchorage Strain and Twisting Test Equipment Torque Arm 20mm IEC60335-1 Clause 25.15

Cord Anchorage Strain and Twisting Test Equipment Torque Arm 20mm IEC60335-1 Clause 25.15

Brand Name: HongCe
Model Number: HJ0609
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate(cost additional)
Standart:
IEC60335-1 Clause 25.15
Test Times:
0~9999(selectable)，25 Times Is By Default
Pull Force Frequency:
1 Times/s
Torque Arm:
20mm
Torque Time:
0.01S～99 Hours 99 Min
Torque Weights:
5N*12.5N*17.5N*1(the Torque Force 0.1Nm、0.25Nm、0.35Nm Can Be Achieved)
Packaging Details:
Plywood
Highlight:

electrical appliance tester

,

portable appliance testing equipment

Product Description

          IEC60335-1 Clause 25.15 Cord Anchorage Strain and Twisting Test Equipment



Product information:



The test appliance conforms to IEC60335-1 Clause 25.15. It is used to check whether the cord anchorage of the household appliances’ power cord is firm, can process the pull force and torque testing.



Technical parameters:



Power Supply AC220V, 50HZ
Pull force weights 10N*2,20N*2,30N*2( the pulling force of 30N,60N,80N,100N can be achieved)
Torque weights 5N*12.5N*17.5N*1(the torque force 0.1Nm,0.25Nm,0.35Nm can be achieved)
Test times 0~9999(selectable),25 times is by default
Pull force frequency 1 times/s
Torque arm 20mm
Torque time 0.01S～99 hours 99 min
Clamp Combined clamp for both pull force and torque, matching by the bearing, can reduce the friction when processing torque test
