IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Machine Driven By Pneumatic

Brand Name:	HongCe
Model Number:	HJ0605
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Gas Source:

Compressed Air 5 ~ 7kg / Cm²

Test Speed:

30 Cycles / Min

Test Cycles:

0~9999 Times

Drive Mode:

Pneumatic

Withdrawable Angle:

30~70°, Can Be Preset

Withdrawable Stroke:

Maximum 1000mm, Can Be Adjusted

Packaging Details:

Plywood

Highlight:

IEC 60335-1 Endurance Testing Machine

Clause 22.16 Endurance Testing Machine

Product Description

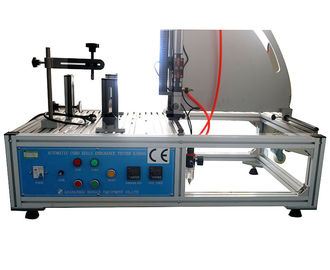

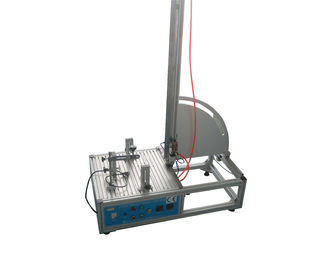

IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Equipment Drive By Pneumatic

Standard: IEC 60335-1 Clause 22.16 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application: It is used to check the automatic cord reels shall be constructed so that they do not cause

– undue abrasion or damage to the sheath of the flexible cord;

– breakage of conductor strands;

– undue wear of contacts.

Test sample: Automatic cord reels of household appliances and similar electrical appliances.

Feature: The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most test electrical products.

Parameters:

Input Power	220V/50HZ
Gas Source	Compressed air 5 ~ 7kg / cm²
Test Speed	30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less)
Test Cycles	0~9999 times, the test device will stop working automatically when the preset test cycles are finished
Drive Mode	Pneumatic
Withdrawable Angle	30~70°, can be preset
Fixture	Quick clamping fixtures, easy for clamping the test sample
Withdrawable Stroke	Maximum 1000mm, can be adjusted
