IEC60335-1 Autoinclined Plane Test Device For Stability With Control Cabinet

Brand Name:	HongCe
Model Number:	HJ0603A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Input Power:

220V±10%, 50Hz

Table Diameter:

1000mm

Table Rotating Speed:

1r/min Can Rotate Counterclockwise Or Clockwise

Maximum Weight Load Of The Table:

100kg

Tilt Angle:

0-45°stepless Adjustable, Precision ±1°, Come With An Angle Measuring Instrument

Packaging Details:

Plywood

Highlight:

IEC 60335-1 Plane Test Device

1000mm Plane Test Device

Product Description

IEC60335-1 Electrical Appliance Tester Autoinclined Plane Test Device For Stability With Control Cabinet

Standard

IEC60598-1: Luminaires - Part 1: General requirements and tests, clause 4.13.4c), IEC 60335-1 clause 20.1

Application:

This device is suitable for stability test for appliances intended to be used on a surface such as the floor or a table.

Test sample

Household appliances, such as refrigerators, washing machines, air conditioners and other similar purpose electrical appliances

Feature

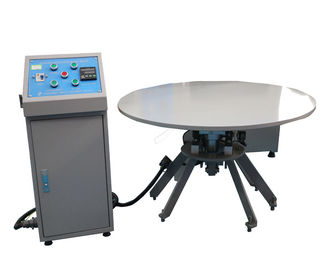

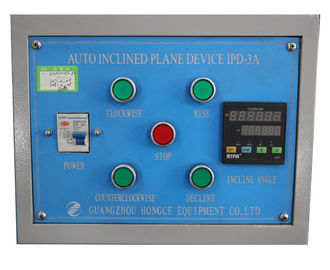

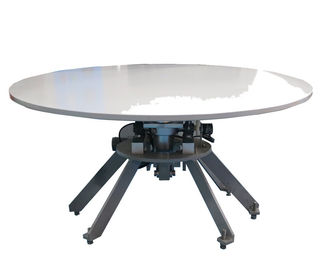

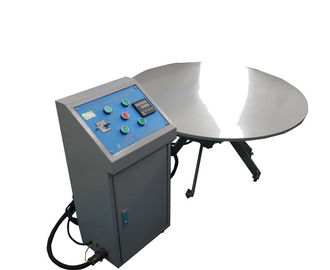

The device is composed of a working table and an angle adjusting device, and the test sample is placed on the top surface, and the mechanical stability performance is tested through different angles. Optional electrical model, to achieve the rotate speed of 1r/min.

Parameters

Input Power	220V±10%, 50Hz
Table diameter	1000mm
Table rotating speed	1r/min can rotate counterclockwise or clockwise
Table Material	Spray steel plate
Maximum weight load of the table	100kg
Tilt angle	0-45°stepless adjustable, precision ±1°, come with an angle measuring instrument
