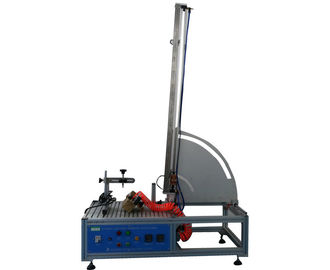

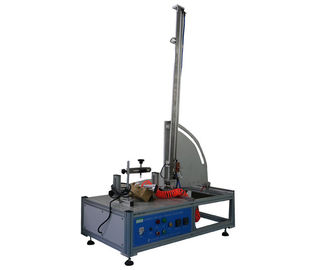

IEC60335-1 Automatic Cord Reels Endurance Tester Withdrawable Stroke Maximum 1000mm

Brand Name:	HongCe
Model Number:	HJ0605
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Input Power:

220V/50HZ

Gas Source:

Compressed Air 5 ~ 7kg / Cm²

Test Speed:

30 Cycles / Min (or At The Maximum Rate Allowed By The Construction Of The Cord Reel If This Is Less)

Test Cycles:

0~9999 Times, The Test Device Will Stop Working Automatically When The Preset Test Cycles Are Finished

Drive Mode:

Pneumatic

Withdrawable Angle:

30~70°, Can Be Preset

Packaging Details:

Plywood

Highlight:

portable appliance testing equipment

portable appliance tester

Product Description

Appliance Tester Automatic Cord Reels Endurance Tester Withdrawable Stroke Maximum 1000mm

Standard

Clause 22.16 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application

It is used to check the automatic cord reels shall be constructed so that they do not cause

– undue abrasion or damage to the sheath of the flexible cord;

– breakage of conductor strands;

– undue wear of contacts.

Test sample

Automatic cord reels of household appliances and similar electrical appliances.

Feature

The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most test electrical products.

Parameters

Input Power	220V/50HZ
Gas Source	Compressed air 5 ~ 7kg / cm²
Test Speed	30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less)
Test Cycles	0~9999 times, the test device will stop working automatically when the preset test cycles are finished
Drive Mode	Pneumatic
Withdrawable Angle	30~70°, can be preset

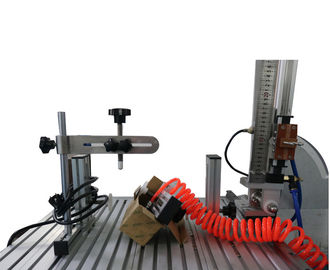

Fixture	Quick clamping fixtures, easy for clamping the test sample
Withdrawable Stroke	Maximum 1000mm, can be adjusted
