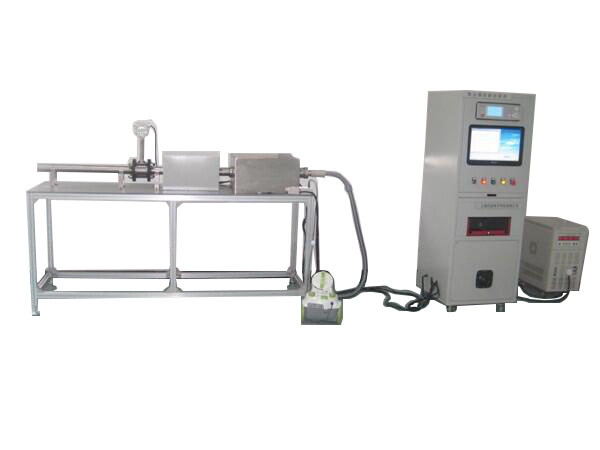

High Performance Vacuum Cleaner Test System European Standard IEC 60312

High Performance Vacuum Cleaner Test System European Standard IEC 60312

  • High Performance Vacuum Cleaner Test System European Standard IEC 60312
  • High Performance Vacuum Cleaner Test System European Standard IEC 60312
High Performance Vacuum Cleaner Test System European Standard IEC 60312
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: HJ0641
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 set/month
Contact Now
Detailed Product Description
Voltage: AC(10V~300V) Current: AC(0.01A~20A)
Flowmeter: (0.5~5) CBM/min Vacuum Pressure Gauge: (0~-50)Kpa
Standard: IEC 60312 Temperature Compensation And Correction: IEC 60312 Clause 5.2.8.4 Air Density Standard Air Density
High Light:

electrical appliance tester

,

portable appliance tester

Vacuum Cleaner Test System To Test Vacuum Cleaner Performance European Standard According To Standard IEC 60312 HJ0641





Standard :IEC60312 clause2.1.5 fig1,clause 2.1.2 fig2,clause 2.1.3 fig4,clause 5.2.2 fig5,clause 5.2.3 fig6,clause 5.2.4 fig7a,7b,7c,7d .



Application: It is used for the manufacturers and testing organizations to test the vacuum cleaner.Test parameters: the voltage of vacuum cleaner ,the current ,input power , power factor, suction power, flow rate, vacuum and efficiency



Test sample: Vacuum cleaner



Feature:

1.According to European standard requirements, European standard A test method for throttle valve, control valve opening size, a total of 15 points

2,Inflatable chamber (uniform pressure box): European standard size and material according to standard IEC 60312 in the 5.2.8.1 (A) design

3,Test tube: in Europe standard, the test pipe is formed by throttling valve and steel pipe, and the measuring accuracy is + 2%

4,Voltage AC(10V~300V),Accuracy:0.5%

Current AC(0.01A~20A),Accuracy:0.5%

Flowmeter(0.5~5) CBM/min Accuracy:±1%

Vacuum pressure gauge: (0~-50)Kpa ,Accuracy:±1%

5,Temperature compensation and correction: The European standard is modified according to standard air density in accordance with 5.2.8.4 of IEC 60312.



Basic test process:

1.Conforms to the requirements of IEC 60312 clause 2.8)

2.Place the vacuum cleaner on the test bench and transfer the test voltage to + 1% rated voltage and + 1Hz rated frequency. First, run 10 minutes to establish a temperature reference value for the release gas for measurements at each point below. For each measuring point, measure after 1 minutes after throttling, and then vacuum cleaner opens again to achieve reference conditions. You can check the temperature of the gas released by the vacuum cleaner



Configuration list:



Name Quantity Paramount
Test bench 2 Standard profile structure
Normal inflatable room 1 Conforms to IEC60312 460mm*250mm*460mm stainless steel 5mm thickness
Comprehensive performance tester 1 Test accuracy 0.5
Vortex Flowmeter 1 Range: (0.5~5) CBM/min accuracy : ±1% With temperature and pressure compensation
Pressure transmitter 1 Range: 0— - 50Kpa accuracy: ±0.5% With temperature and pressure compensation
Electric valve control system 1 Step control 15 point data sampling, use unequal algorithm
Test control cabinet 1 Electric integrated control circuit, manual test adjustment button
Air switch, cable 1 With over-current protection, stop button
Vacuum cleaner made of the whole machine 1 Conversion aperture 32mm, 35mm, motor diameter to be provided
testing software 1 Corrected IEC60312 by European standard 5.2.8.4
System PC 1 DELL 660, dual core CPU, 2G memory, 500G hard disk
Printer 1 HP100





Pictures for reference :

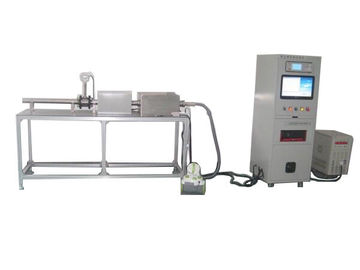

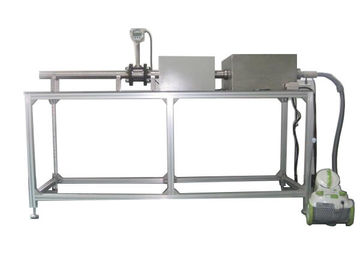

High Performance Vacuum Cleaner Test System European Standard IEC 60312 0High Performance Vacuum Cleaner Test System European Standard IEC 60312 1
