ISO4532 HPL Tester For Resistance To Impact By Small-Diameter Ball With Energy 0~90 N / CM

Brand Name:	HongCe
Model Number:	SH-16
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T,
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Impact Energy:

0 ~ 90 N / CM

Standard:

ISO4532 , ISO4586 - 2

Diameter Of Steel Bal:

Φ 5mm

Minimum Scale:

2N / CM

Packaging Details:

plywood

Highlight:

impact test equipment

impact test machine

Product Description

ISO4532 HPL Tester For Resistance To Impact By Small-Diameter Ball With Energy 0 ~ 90 N / CM

Standard:

GB / T7911-2013 Clause 7.3.8 Figures 6 and 7, ISO4532, DIN ISO4532 (DIN51 155), ISO4586-2, SO438-2, EN438-2:2016 Clause 20.3.

Test Scope:

Impact testing for High-pressure decorative laminates-Sheets made from thermosetting resins (HPL).

Parameters:

1. Impact energy: 0~90N/cm adjustable

2. Scale: 2N/cm

3. The diameter of impact steel ball Φ5mm

4. With round support fixture, used to fix the impact test

5.The rating after 5 shocks shown below:

Class	Spring Force N
1	≥12
2	≥15
3	≥20
4	≥25
Only applicable for thin laminates ≤ 2mm

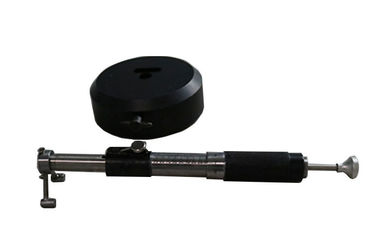

Figures For Reference:

ISO4532 HPL Tester For Resistance To Impact By Small-Diameter Ball With Energy 0~90 N / CM 0
