UL817 intensity Light Testing Equipment Attaching Plug Tension Tester

Brand Name:	HongCe
Model Number:	AP-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Packaging Details:

Plywood

Highlight:

light testing equipment

led light tester

Product Description

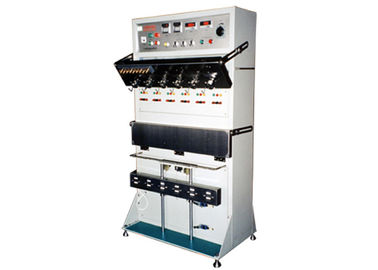

Attaching Plug Tension Tester

Product information:

This device complies with UL817 standard which is applicable in the assessment of the connection intensity between the molded power plug and guide line, and the guide wire’s anti- sudden tensile strength. Four tests can be achieved. They are the tests of sudden pulling, reversing, current and load.

Technical requirements and Working Environment:

1. Power supply:AC 220V 50Hz

2. Load current:0~50A Adjustable

3. Load voltage:6~12V

4. Working station: 6

5. Test number:1~9999

6. Testing time:0.1~999.9S

7. Load weight:5000g*2pcs, 1000g,500g,250g,100g *4pcs for each

8. Environment temperature:0~40℃

9. Environment humidity:<85%

10.No violent shake, shock, vibration and the places where no corrosive air.
