Electrical Appliance Tester
Created with Pixso.

Pneumatic Automatic Cord Reels 50HZ Endurance Testing Machine

Pneumatic Automatic Cord Reels 50HZ Endurance Testing Machine

Brand Name: HongCe
Model Number: HJ0605
MOQ: 1 set
Price: Negotiatable
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate(cost additional)
Input Power:
220V/50HZ
Withdrawable Stroke:
Maximum 1000mm, Can Be Adjusted
Test Speed:
30 Times / Min
Test Cycles:
0~9999 Times
Drive Mode:
Pneumatic
Withdrawable Angle:
30~70°, Can Be Preset
Packaging Details:
Plywood
Highlight:

electrical appliance tester

,

portable appliance testing equipment

Product Description

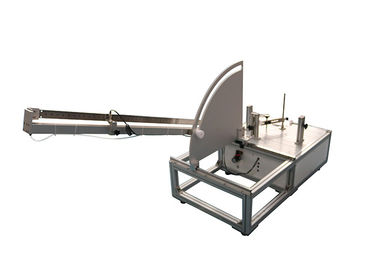

Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment with 30 times/min Test rate



Standard:

IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 22.16



Standard description:

Automatic cord reels shall be constructed so that they do not cause

– undue abrasion or damage to the sheath of the flexible cord;

– breakage of conductor strands;

– undue wear of contacts.

Compliance is checked by the following test, which is carried out without passing current through the flexible cord.



Two-thirds of the length of the cord is unreeled. If the withdrawable length of the cord is less than 225 cm, the cord is unreeled so that a length of 75 cm remains on the reel. An additional length of 75 cm of the cord is then unreeled and pulled in a direction so that the greatest abrasion occurs to the sheath, taking into account the normal position of use of the appliance. Where the cord leaves the appliance, the angle between the axis of the cord during the test and the axis of the cord when it is unreeled without substantial resistance is approximately 60°. The cord is allowed to be recoiled by the reel.

If the cord does not recoil at the angle of 60°, this angle is adjusted to the maximum that will allow recoil.



The test is carried out 6 000 times at a rate of approximately 30 times per minute or at the maximum rate allowed by the construction of the cord reel if this is less.



After this test, the cord and cord reel are inspected. In case of doubt the cord is subjected to the electric strength test of 16.3, a test voltage of 1 000 V being applied between the conductors of the cord connected together and metal foil wrapped around the cord.



Test sample:

Automatic cord reels of household appliances and similar electrical appliances.



Parameters:

Parameter Name Parameter Data
Power supply AC220V, 50Hz
Working air source Compressed air 5~7kg/cm2, the air compressor is prepared by user
Test rate 30 times/min (If the rate allowed by the construction of the cord reel is less than 30 times per minute, the test is carried out at a maximum rate allowed by the construction of the cord reel.)
Test times 0~9999 times, the device will stop working automatically when the preset test times reached.
Drive mode Pneumatic
Angle 30~70°adjustable
Clamp Multi-function clamp
Tensile action trip Maximum 1000mm(adjustable)
