IEC60529 Oscillating Tube Tester For Ipx3 And Ipx4 Adjustable Water Flow

IEC60529 Oscillating Tube Tester For Ipx3 And Ipx4 Adjustable Water Flow

Brand Name:	HongCe
Model Number:	HH0802
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Standard:

IEC60529

Control:

PLC Intelligent Control

Needle Hole:

Φ0.4mm

Water Flow:

1-10L/min Adjustable

Testing Time:

0.01S～99hours 59min，can Be Preset

Turntable Diameter:

600/800/1000mm

Usage:

Water Ingress Protection Test

Warranty:

1 Year

Packaging Details:

Plywood

Highlight:

IEC60529 Ingress Protection Test Equipment

Ipx4 Oscillating Tube Tester

Product Description

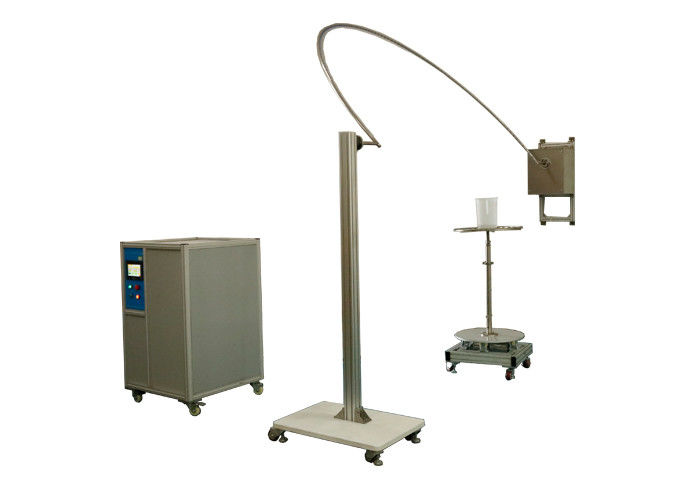

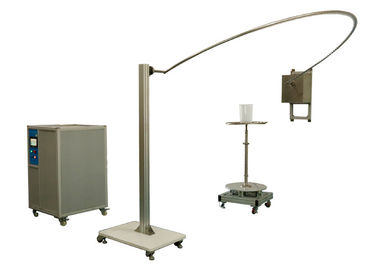

IEC60529 Ingress Protection Test Equipment Oscillating Tube Tester For Ipx3 And Ipx4 Adjustable Water Flow

Standard:

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX3 and IPX4, IEC 60884-1, IEC 60335-1, IEC 60598-1.

Application:

It is used for the testing of IPX3 and IPX4.

Test sample:

The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)

Parameters:

Item	Parameters
Input power	Single-phase AC220V,50Hz
Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit

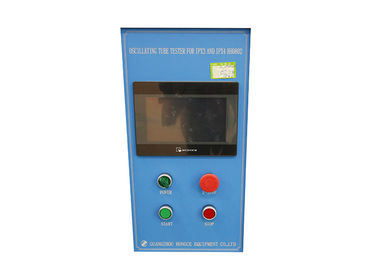

Control and operation	PLC intelligent control, 7 inch color touch screen operation

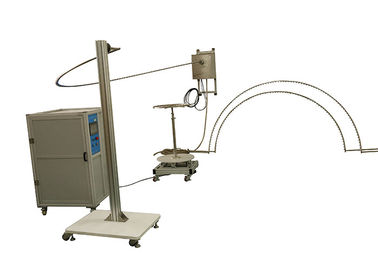

The size of the oscillating tube	R200, R400, R600, R800, R1000, R1200, R1400, R1600mm. Optional,stainless steel
Needle hole	Φ0.4mm
Included angle of two holes	IPX3: 120°; IPX4: 180°
Pendulum angle	IPX3: 120°(±60°); IPX4: 350°(±175°)
Raining speed	IPX3: 4 s/time(2×120°); IPX4: 12 s/time(2×350°);
Water flow	1-10L/min adjustable
Testing time	0.01S～99hours 59min,can be preset
Rotary plate	Diameter: Φ600mm; Rotate speed:1r/min,Can be paused at four aspects, Load bearing≤50㎏electrical equipment
Pressure gauge	0~0.25MPa
Site requirements	Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation
Area covered	It is set according to the selected oscillating tube
