0.1Nm Plug Socket Tester

Brand Name:	HongCe
Model Number:	HO6508
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Control System:

Mitsubishi PLC Intelligent Electrical Control + Man-machine Integrated Interface Operation

Drive Mode:

Servo Motor

Station:

Single

Torque Test:

0.1Nm (360°)

Push Test:

20N

Bend Test:

±90°rotation, 3kg Mass Loaded

Packaging Details:

Plywood

Highlight:

0.1Nm Plug Socket Tester

Product Description

Performance Tester For Proximity Switches With Integrally Connected Cables Pull Force 160N Torque Test 0.1Nm (360°)

Product Introduction

The performance tester for proximity switches with integrally connected cables is special designed and manufactured as per IEC 60947-5-2: 2007 Annex C.8. It is used to test the structural strength performance of various proximity switches and photoelectric sensors with integral connecting cables, ensuring that the connecting cables and switch positions are relatively fixed.

The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, test speed, test stroke, pull force setting and other functions. Can be analyzed by the data record whether the test sample is qualified or not.

Technical Parameters

Model	HO6508
Input power	AC220V 50Hz
Control system	Mitsubishi PLC intelligent electrical control + man-machine integrated interface operation
Drive mode	Servo motor
Station	Single
Test item	Pull test: pull force 160N (d≥8mm) or 20d (d<8mm)
	Torque test: 0.1Nm (360°)
	Push test: 20N
	Bend test: ±90°rotation, 3kg mass loaded
Test time	0-999.9s, can preset each test item’s test time
Test number	0-9999times, can preset each test item’s test number
Load mass	3kg
Test sample	Proximity switch, photoelectric sensor and other similar products with integral connecting cable, the sample switch part is not more than 505050mm, and the cable diameter is not more than 16mm

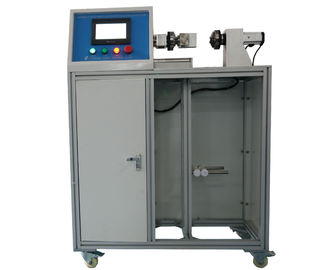

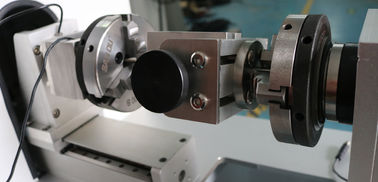

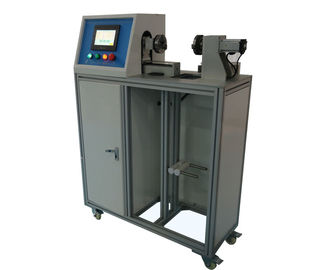

Picture for reference
