Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing

Brand Name:	HongCe
Model Number:	HT-I07
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T,L/C
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Probe Diameter:

12mm

Baffle Diameter:

50mm

Baffle Thickness:

5mm

Probe Length:

Probe Material:

Stainless Steel

Warranty:

1 Year

Color:

Black

Standard:

IEC60884-1

Packaging Details:

Aluminum box

Highlight:

Stainless Steel Plug Socket Tester

IEC60884-1 Standard Electrical Safety Test Probe

Finger Access Protection IEC Test Fixture

Product Description

IEC Standard Plug Socket Tester for Finger Access Protection

This electrical safety test probe is designed for plug and socket compliance testing, serving as a human contact simulation tool strictly defined by international standards. During testing, this indicator assesses whether plugs, sockets, and similar electrical accessories pose a risk of access to live parts under normal use or foreseeable misuse.

Product Applications

Electric shock protection testing for plugs and sockets
Structural safety assessment of electrical accessories
Safety verification during the new product design phase

International Reference Standards

IEC 60529 Clause 12: Protection against access to hazardous parts
IEC 60884-1 Clause 10.1: Protection against electric shock
IEC 60335-1 Clause 8: Protection against access to live parts
IEC 60950/IEC 62368 Accessibility of hazardous voltages
IEC 61032 Test probe B / Test probe 11 dimensional requirements

Technical Specifications

Parameters / Model	HT-I07
Name	Rigid Finger Probe
1	20 -0.05
2	80±0.2
3	R2±0.05
4	S4±0.05
5	37° -10'
6	14° -10'
7	Ф12 -0.05
8	Ф50
9	5±0.5
10	----

Frequently Asked Questions

Q1: Can this test fixture be used by third-party testing organizations?

Yes, its dimensions and structure strictly comply with IEC requirements, making it suitable for laboratory use.

Q2: Can you provide calibration or testing reports?

Factory inspection instructions are available, and third-party calibration is supported.

Q3: Do you support customized sizes?

Yes, customization is available according to customer testing standards.

Q4: Can it be used with other plug-in socket testers?

Yes, it is commonly used in complete IEC test fixture systems.

Q5: What is the lead time?

Sufficient stock ensures fast delivery!

Product Images

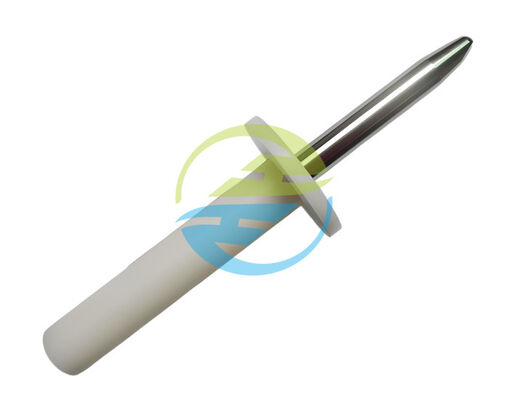

IEC Standard Plug Socket Tester

Product Specification Diagram

Technical Specification Diagram
