Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus

Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus

  • Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus
  • Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus
  • Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus
  • Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus
Protable Standard Spring Impact Test Hammer , Low Energy Impact Test Apparatus
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: SH-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Enclosures, Shell, Lamps Standard: IEC 60068-2-75, IEC 60068-2-63
Test: Impact Test Impact Energy: 0.14; 0.2; 0.35; 0.5; 0.7; 1.0J
Model: Single Energy Or Multi Energy Impact Element Mass: 250g±5g
Overall Mass: 1250g±10g Material: Stainless Steel
High Light:

impact test machine

,

pendulum impact testing machine

Portable Low Energy Spring Operated Impact Hammer SH-1





Specifications:

Test object shell, operating arm, handle, knob, indicator lights and shades of electrical appliance
Reference standard

IEC 60068-2-75;

IEC 60068-2-63.

Test Impact test
Impact energy 0.14; 0.2; 0.35; 0.5; 0.7; 1.0J
Model single energy or multi energy
Impact element mass 250g±5g
Overall mass 1250g±10g
Material Stainless steel



Description:

This device is intended to test the impact resistance to shell, operating arm, handle, knob, indicator lights and shades of electrical appliance for household or similar purpose, to verify the safety performance and strength of the product.

Its design and manufactured according to the test requirements of IEC 60068-2-63, IEC 60068-2-75. Can be widely used in many industrials and many standards of IEC 60335-1, IEC 60598-1, IEC 60950, and IEC 60065.



Feature:

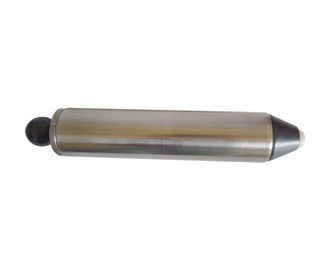

1. The impact hammer is composed of three parts:

A. Shell. Includes housing, impact element guide and release mechanism, and parts fixed on these parts.

B. Impact element. Including the hammer, hammer tail and firing handle.

C. Release cone.

2. Working principle

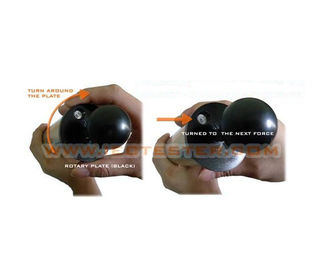

The hammer generate impact energy by the mass and movement of impact element. When pulling the operating handle, release claw stop at the impact element release point, the hammer spring is pressed, when the compression quantity is different, the spring will release the different energy. For multi energy impact hammer, rotate the end cover to select corresponding impact energy. The impact energy was calibrated on calibration facility before delivery.



More spring operated impact hammers for options

Mode SH-1 SH-2 SH-5 SH-6
Impact energy(J) 0.14; or 0.2; 0.35; 0.5; 0.7; 1.0 2±0.1 0.2 and 0.35, 0.5, 0.7, 1 0.14 and 0.2, 0.35, 0.5, 0.7, 1
Impact element mass 250g±5g 500g±5g 250g±5g 250g±5g
Overall mass 1250g±10g 1500g±10g 1450g±10g 1450g±10g
Material Stainless steel Stainless steel Stainless steel Stainless steel



Don't know how to use it ?click here user manual SH-1.pdf to get the usage .
