Protable 2J energy Impact Testing Machine Standard Spring Operated Impact Hammer

Brand Name:	HongCe
Model Number:	SH-2
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Enclosures, Shell, Lamps

Standard:

IEC 60068-2-75, IEC 60068-2-63

Test:

Impact Test

Impact Energy:

Accuracy:

±0.1J

Impact Element Mass:

500g±5g

Overall Mass:

1500g±10g

Material:

Stainless Steel

Packaging Details:

Carton Box

Highlight:

impact test equipment

impact test machine

Product Description

Protable 2J energy Impact Testing Machine Standard Spring Operated Impact Hammer

Specifications:

Test object	shell, operating arm, handle, knob, indicator lights and shades of electrical appliance
Reference standard	IEC 60068-2-75; IEC 60068-2-63.
Test	Impact test
Impact energy	2J
Accuracy	±0.1J
Impact element mass	500g±50g
Overall mass	1500g±10g
Material	Stainless steel

Description:

This device is intended to test the impact resistance to shell, operating arm, handle, knob, indicator lights and shades of electrical appliance for household or similar purpose, to verify the safety performance and strength of the product.

Its design and manufactured according to the test requirements of IEC 60068-2-63, IEC 60068-2-75. Can be widely used in many industrials and many standards of IEC 60335-1, IEC 60598-1, IEC 60950, and IEC 60065.

Feature:

1. The impact hammer is composed of three parts:

A. Shell. Includes housing, impact element guide and release mechanism, and parts fixed on these parts.

B. Impact element. Including the hammer, hammer tail and firing handle.

C. Release cone.

2. Working principle

The hammer generate impact energy by the mass and movement of impact element. When pulling the operating handle, release claw stop at the impact element release point, the hammer spring is pressed, when the compression quantity is different, the spring will release the different energy. For multi energy impact hammer, rotate the end cover to select corresponding impact energy. The impact energy was calibrated on calibration facility before delivery.

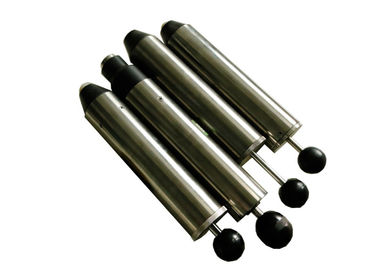

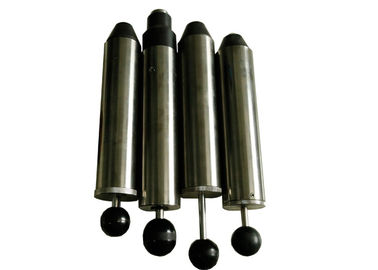

More spring operated impact hammers for options

Mode	SH-1	SH-2	SH-5	SH-6
Impact energy(J)	0.14; or 0.2; 0.35; 0.5; 0.7; 1.0	2±0.1	0.2 and 0.35, 0.5, 0.7, 1	0.14 and 0.2, 0.35, 0.5, 0.7, 1
Impact element mass	250g±5g	500g±5g	250g±5g	250g±5g
Overall mass	1250g±10g	1500g±10g	1450g±10g	1450g±10g
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel

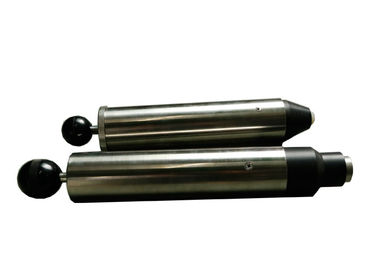

Protable 2J energy Impact Testing Machine Standard Spring Operated Impact Hammer 0

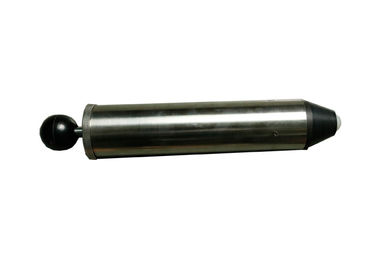

Protable 2J energy Impact Testing Machine Standard Spring Operated Impact Hammer 1
