Impact Test Material Testing Equipment For Vitreous / Porcelain Enamels

Brand Name:	HongCe
Model Number:	SH-11
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Vitreous And Porcelain Enamels

Standard:

ISO 4532

Test:

Impact Test

Impact Energy:

0~90N/cm

Scale:

2N/cm

Material:

Stainless Steel

Release Mode:

Manual

Color:

Silver

Packaging Details:

plywood

Highlight:

impact test equipment

pendulum impact testing machine

Product Description

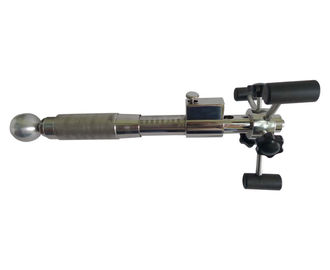

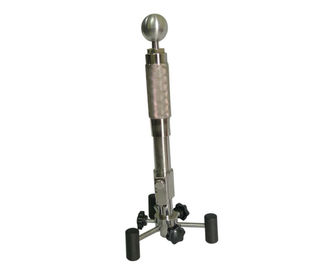

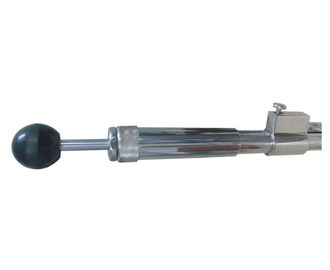

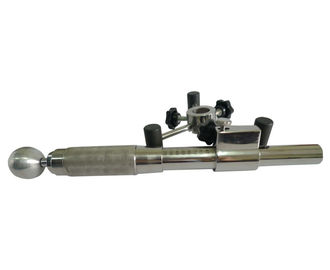

Porcelain Enamels Pistol Tester

Description:

This device is suitable for pistol test to determination of the impact resistance of vitreous and porcelain enamels and other enameled articles.

Its design and manufactured according to the test requirements of ISO4532.

Feature:

Vitreous and porcelain enamels - Determination of the resistance of enameled

articles to impact - Pistol test. This device is a portable handheld instrument that can be stored in a suitcase, to avoid the disassembly, transportation and many other problems, can be tested in laboratory, outside the workshop, suitable for the factory production management test. This device is completely mechanical instruments, strength is in the range of 0~90 N/cm continuously adjustable, scale 2 N/cm; with specially designed triangle bracket, can be tested on the uneven surface samples, and can test the edge part of the sample also.

Specifications:

Test object	vitreous and porcelain enamels
Reference standard	ISO 4532
Test	Impact test
Impact energy	0~90N/cm
Scale	2N/cm
Material	Stainless steel
Release mode	manual
Color	silver
