| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | SH-13 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Equipment Enclosure | Standard: | IEC 60950, IEC 60065, IEC 60598 |
|---|---|---|---|
| Test: | Drop Impact Test | Drop Height: | Up To 2000mm |
| Impact Steel Ball: | 110g, 130g, 64g, One Each | Release Mode: | DC Electromagnetic Control |
| Drop Direction: | Vertical | Power Supply: | 220VAC 50Hz |
| High Light: | impact test machine,pendulum impact testing machine |
||

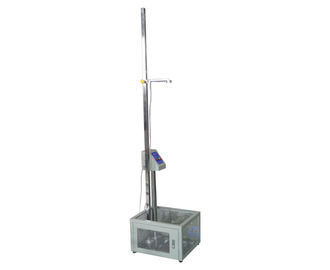

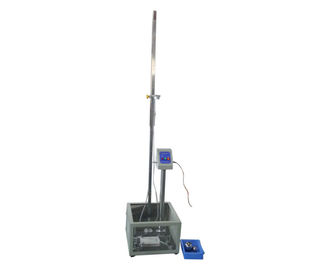

Dropping Ball Impact Test Device
Description:
This device is suitable for drop impact test for equipment enclosure, verify the merchanical strength of equipment enclosure and kinds of materials, say plastic, ceramic, glass, acrylic fiber and other materials.
Comply to standard IEC 60950-1, IEC 60598-1, IEC 60065 etc.
Feature:

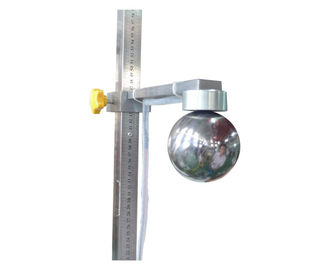

This device use a steel ball of certain weight, adjust to a certain height, make the ball free fall down to impact the sample. Judge the quality according to damage degree.
Specifications:
| Power supply | 220VAC 50Hz |
| Drop ball control mode | DC electromagnetic control |

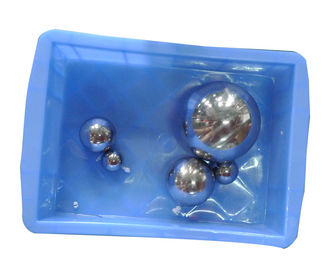

| Impact steel ball | 110g, 130g, 64g, one each |
| Dimension | 500*450*2000mm |
| Weight | about 30kg |
| Test object | equipment enclosure |
| Test | drop impact test |
| Drop height | up to 2000mm |
| Impact steel ball | 110g, 130g, 64g, one each |
| Drop direction | Vertical |
