Carton Compression Test Impact Testing Machine of compressive strength package deformation

Carton Compression Test Impact Testing Machine of compressive strength package deformation

Brand Name: HongCe
Model Number: SH-16
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 20 set per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Test Object:
Cartons, Package
Standard:
ISO2872, ISO2784, ISO12048, ISO2234
Test:
Compression Test
Capacity:
1 T
Accuracy:
±0.5%
Displacement:
650~1500mm
Test Speed:
0-5000N 12.5±2.5mm/min; 5001-10000N 10±3mm/min
Test Space:
600~1500mm
Packaging Details:
plywood
Highlight:

impact test machine

,

pendulum impact testing machine

Product Description

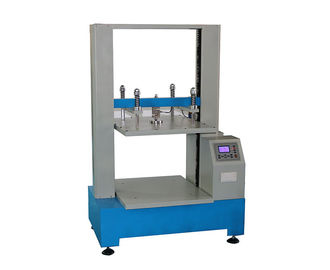

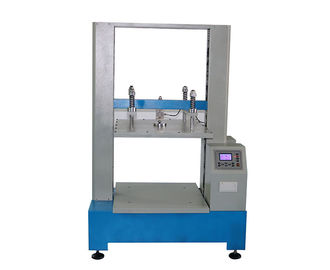

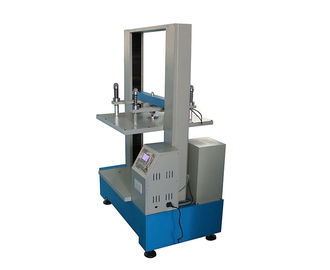

Carton Compression Test Device





This device is suitable for testing the compressive strength of cartons, conduct compression, package deformation, stacking test.

Can be used for Corrugated carton, honeycomb board box pressure, package deformation, stacking test, plastic barrels (edible oil, mineral water), cardboard, cartons, paper cans, container barrels (IBC barrels) and other containers.



Specifications:

Capacity 1T
Accuracy ±0.5%
Control panel can display and print test times, test value, peak value and fracture value etc.
Displacement 650~1500mm
Test speed 0-5000N 12.5±2.5mm/min; 5001-10000N 10±3mm/min
Test space 600~1500mm
Compressive strength test function to determination of the ultimate compressive strength of the sample, the test machine will automatically record the peak pressure
Stacking strength test functions to test the bearing durability of packaging by simulate storage conditions, tester compress the sample in a speed of 12.5(10)mm/min till the pressure reach preset force, when packaging deformation and pressure drop 5% set value, tester will automatic supplement pressure to the preset pressure and maintain till set test time completed, then tester will stop automatically.
Power gear Ibf, N, Kgf
Transmission mode precision ball screw drive
protection device leakage protection, overload automatic shutdown protection, travel limit protection
print function automatic print report
motor Taiwan AC variable frequency motor
Power supply AC220V 50Hz
Dimension 1100*800*1300mm
Weight approximate 300kg

Carton Compression Test Impact Testing Machine of compressive strength package deformation 0Feature:

  1.
  2. Using double precision ball screw vertical structure, the overall of floor design
  3. Transmission system using Taiwan AC inverter motor and streamline the utility of the transmission
  4. Test speed is closed loop control, the regulation is convenient, the speed is stable
  5. Measurement and control system using a single chip microcomputer as the central processing unit of digital circuit technology.
  6. Test data display on control panel, can be printed by the printer, the whole structure is simple, functional, easy to operate and maintain.
