Impact Testing Machine
Created with Pixso.

Paperboard And Material Bursting Strength Test Machine With Pressure Converter Induction Way

Paperboard And Material Bursting Strength Test Machine With Pressure Converter Induction Way

Paperboard And Material Bursting Strength Test Machine With Pressure Converter Induction Way

Brand Name: HongCe
Model Number: SH-18
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 20 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Test Object:
Paperboard
Standard:
ISO 2759
Test:
Bursting Strength Test
Capacity:
6-100kg/cm2
Hydraulic Speed:
High Pressure 170±10ml/min, Low Voltage 95±10ml/min
Motor:
1/4HP
Induction Way:
Pressure Converter
Display:
LCD Display
Packaging Details:
plywood
Highlight:

impact test equipment

,

pendulum impact testing machine

Product Description

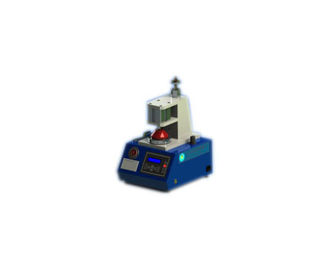

Paperboard Bursting Strength Test Machine





Description:

This device is design and manufacture according to standards ISO 2759 Paperboard--Determination of bursting strength, JIS-L1004, L1018, L1031, K6328, P8131, P8112 and ASTM-D2210, TAPPI T403, ISO2759-2001.

This device can use for test the bursting strength of paper, cardboard, cloth, leather, shoes, electronics, electrical wiring, electrical appliances, hardware, textiles, handbags, leather, bicycles, food packaging, furniture and other.



Features:

The signal transmission pressure, sample rupture, automatic shutdown and retain the maximum fracture force. Test results are printed out by micro writer.

Paperboard And Material Bursting Strength Test Machine With Pressure Converter Induction Way 0

Specificaitons:

  1. Induction way: pressure converter
  2. Display: liquid crystal LCD display
  3. Print data: test values have average, time, date and other data
  4. Capacity: 6-100kg/cm2
  5. Hydraulic speed: high pressure 170±10ml/min, low voltage 95±10ml/min
  6. Motor: 1/4HP
  7. Dimension: 350*400*550mm
  8. Weight: 30KG
  9. Power: AC220V, 3A
