Multifunctional Impact Testing Machine for Paper / Board Crush Test ISO 7263

Brand Name:	HongCe
Model Number:	SH-19
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Paper And Board

Standard:

ISO 7263

Test:

Crust Test

Capacity:

10,20,50,100,200kg

Crush Plate:

Diameter 110mm

Crush Base:

Diameter 120mm

Crush Spacing:

80 Mm

Test Speed:

12.7mm/min

Packaging Details:

plywood

Highlight:

impact test machine

pendulum impact testing machine

Product Description

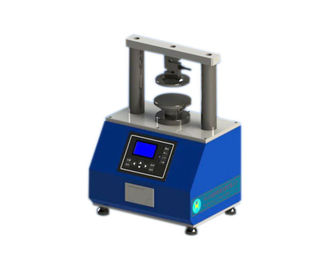

Paper and Board Crush Test Machine

This device is design and manufacture according to standards TAPPI-T472, T808, T810, T811, T818, JIS-P8126, ISO 7263, ISO/DIS 12192, ISO/CD 13821

This device can use for conduct 5 kinds of paper strength tests, that is, the ring crush test(RCT), flat crush test(FCT), edge crush test(ECT), paste test(PAT), general compression test(CMT).

The testing machine can be used to do full range crush testing to variety of materials

Multifunctional Impact Testing Machine for Paper / Board Crush Test ISO 7263 0

Specificaitons:

Capacity: 10,20,50,100,200kg (for option)
Crush plate: diameter 110mm
Crush base: diameter 120mm
Crush spacing: 80mm
Test speed: 12.7mm/min
Weight: 48kg
Power supply: AC220V 50Hz
Equipped with edge crush clamp, ring crush clamp and paste test clamp for option
