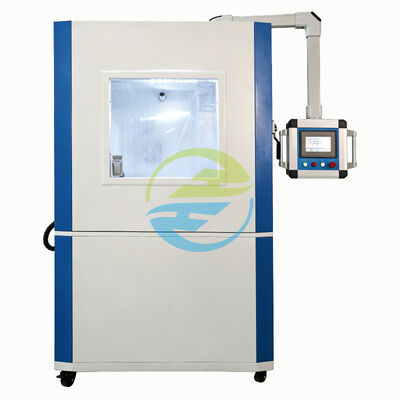

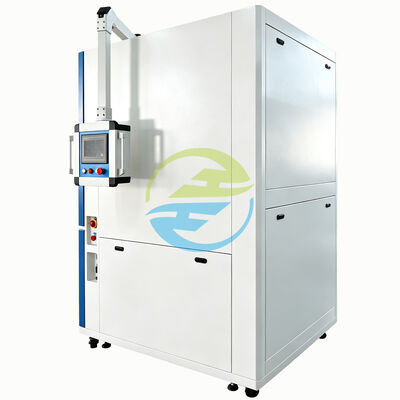

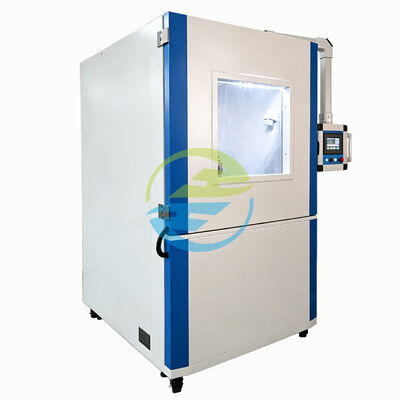

IEC60529 Compliant IP5X IP6X Sand Dust Test Chamber | Industrial Dust Ingress Protection Testing Equipment For Lab Reliability Certification

This sand dust testing device is professionally built per IEC60529 Figure 2 core clauses, simulating floating dry dust environments to complete IP5X dust-protected and IP6X dust-tight grade verification for enclosures. It adopts closed circulating dust suspension system, intelligent PLC touch screen control and SUS304 corrosion-resistant inner tank, ensuring uniform dust distribution and repeatable test data that can be directly recognized by SGS,CE and other global certification bodies.

Whether you need standard 1m³ bench-top chamber for small consumer electronics, customized large walk-in sand dust room for new energy vehicle battery packs, or combined dust-vibration composite test equipment, our technical team will draw exclusive layout schemes free of charge. You can jump to our IP testing equipment series page to view matched IPX1-IPX8 water spray testers for one-stop IP rating testing solutions.

• Source Factory R&D & Manufacturing Support: Independent mechanical & electrical R&D team, in-house CNC workshop, all core components self-assembled, support drawing-based full customization of chamber size, vacuum power and control logic
• 100% IEC60529 Standard Parameter Matching: Strictly follow international dust test clauses, dust concentration, airflow speed and vacuum negative pressure fully comply with IP5X/IP6X certification requirements, no parameter cutting corners
• Intelligent PLC Touchscreen Operating System: 7-inch industrial touch panel, store up to 99 groups of test programs, one-click automatic operation of dust blowing, vibration, vacuum suction and timing cycle, real-time data display & automatic report export
• Anti-Corrosion SUS304 Stainless Steel Structure: Inner chamber, dust circulation pipeline and sample turntable all use 1.5mm thick SUS304 stainless steel, anti-rust, anti-dust adhesion, long service life over 10 years
• Uniform Closed Dust Circulation System: Frequency conversion blower + bottom dust vibrator keep talcum powder suspended evenly, dust concentration fluctuation controlled within ±0.2kg/m³, eliminate dead dust zones inside chamber
• Independent Vacuum Negative Pressure Module for IP6X Test: Built-in high-flow vacuum pump with adjustable negative pressure 60–600L/H, meet full dust-tight test demands for high-protection enclosures

Function parameters for IP Testing Equipment:

• IP5X dust protection rating verification
• IP6X full dust-tight enclosure certification test
• Long-term dust environment sealing aging test
• Mechanical moving parts dust jam resistance performance test
• Internal circuit dust short-circuit risk simulation test
• Sealing gasket dust erosion durability assessment
• Export product IP certification pre-test for customs clearance documents

HongCe operates a 3,000-square-meter automated production plant and an in-house professional calibration laboratory, backed by a mature R&D team consisting of more than 20 mechanical and electrical engineers. All products are certified with CE, RoHS and compliant with the ISO9001 quality management system. Our reliable testing equipment and customized solutions have been widely adopted by manufacturing enterprises, third-party testing institutions and academic research institutions in over 50 countries worldwide.
