products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Plug Socket Tester
Created with Pixso.

300N Power Plug Compression Test Equipment for IEC 60884-1 Plug Socket Testing

300N Power Plug Compression Test Equipment for IEC 60884-1 Plug Socket Testing

300N Power Plug Compression Test Equipment for IEC 60884-1 Plug Socket Testing

Brand Name: HongCe
Model Number: HC9902
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 30 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Name:
Compression Testing Machine
Warranty:
1 Year
Material:
Stainless Steel
Test Station:
1 Station
Test Weight:
300N
Operating Method:
By Manual
Test Sample:
Plugs
Application:
Compression Test
Packaging Details:
Plywood
Highlight:

300N power plug tester

,

IEC 60884-1 socket tester

,

compression test equipment for plugs

Product Description
300N Power Plug Compression Test Equipment for IEC 60884-1 Plug Socket Testing
Product Overview

The HC9902 Power Plug Compression Test Device is a professional Plug Socket Tester designed for evaluating the compression resistance and mechanical strength of power plugs, plug pins, and electrical accessories according to IEC 60884-1 standards. Manufactured directly by HongCe, this equipment is widely used by testing laboratories, plug and socket manufacturers, quality inspection departments, and electrical appliance factories.

Built for long-term stability and repeatable testing accuracy, the equipment simulates external compression forces that plugs may encounter during transportation, storage, installation, or daily use. The device helps manufacturers verify product safety, structural reliability, and compliance before products enter international markets.

As a source factory supplier, HongCe provides stable quality control, fast delivery, customized solutions, and dependable technical support for global customers.

Product Features
High Precision Compression Testing

The equipment applies a standardized 300N compression force to evaluate the deformation resistance of plugs and accessories.

Stable Mechanical Structure

Manufactured with high-strength metal materials to ensure long-term operational stability and testing consistency.

Standard-Compliant Design

Fully designed according to IEC 60884-1 related clauses for plug mechanical strength testing.

International Reference Standards

IEC 60884-1 Plugs and socket-outlets for household and similar purposes

Standard ClauseTest Content
IEC 60884-1 Clause 24Mechanical strength verification
IEC 60884-1 Clause 10Protection against electric shock
IEC 60884-1 Clause 13Construction requirements
IEC 60884-1 Clause 24.6Compression resistance and deformation evaluation
IEC 60884-1 General RequirementsSafety and durability assessmen
Test Objects
  • Power plugs
  • Plug pins
  • Socket accessories
  • Portable outlet products
  • Household electrical connectors
  • Industrial connector components
Detectable Test Items
  • Structural deformation
  • Compression resistance
  • Mechanical failure
  • Housing cracks
  • Plug body damage
  • Structural instability
Parameters With Plug Socket Tester:
NameCompression Testing Machine
Warranty1 Year
MaterialStainless Steel
Test Station1 Station
Test Weight300N
Operating MethodBy manual
Test SamplePlugs
ApplicationCompression Test
Product Details With Plug Socket Tester:

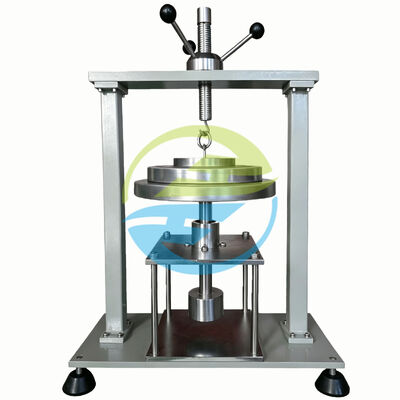

300N Power Plug Compression Test Equipment for IEC 60884-1 Plug Socket Testing 0

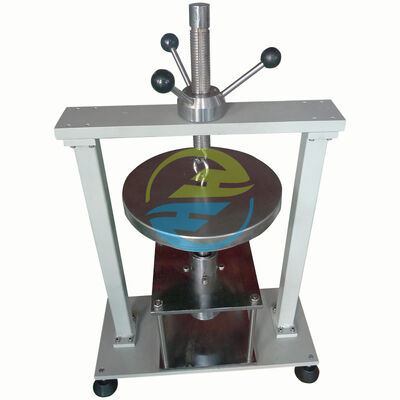

300N Power Plug Compression Test Equipment for IEC 60884-1 Plug Socket Testing 1

FAQ
What standards does the HC9902 comply with?

The equipment is primarily designed according to IEC 60884-1 requirements for plug and socket mechanical strength testing.

What products can be tested?

It can test power plugs, plug accessories, connector components, and related electrical products.

Is customization available?

Yes. HongCe can provide customized fixtures, voltage configurations, and special testing solutions based on customer requirements.

Is operator training provided?

Yes. We provide operation guidance, technical documents, and remote support services.

Can the machine be used for certification laboratories?

Yes. The equipment is suitable for certification labs, factory QA departments, and R&D testing centers.

How is after-sales service handled?

HongCe provides long-term technical support, spare parts assistance, and responsive after-sales communication.

About HongCe

HongCe Testing Equipment Co., Ltd. is a professional manufacturer specializing in IEC testing equipment, Plug Socket Tester systems, appliance testing equipment, and laboratory testing solutions.

With years of industry experience, HongCe supplies testing equipment to customers worldwide, including laboratories, manufacturers, inspection organizations, and certification institutions. The company focuses on product reliability, international standards compliance, and long-term customer cooperation.
