IEC 60884 Plug Socket Tester for Plug Pin Retention Strength Testing | Stainless Steel Plug Firmness Test Equipment

Brand Name:	HongCe
Model Number:	HC9928
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

MATERIAL:

Stainless Steel

STATION:

1 Station

CLAMP UNIT:

Plug Pin Clamp Unit

STANDARD:

IEC60884.1, VDE0620

WEIGHTS:

4N, 20N, 30N, 50N

GAUGES:

Customizable

Packaging Details:

Plywood

Product Description

IEC 60884 Plug Socket Tester for Plug Pin Retention Strength Testing | Stainless Steel Plug Firmness Test Equipment

Ensure plug safety and compliance with international standards using this high-precision Plug Socket Tester. Designed for plug pin retention strength testing, this equipment provides reliable and repeatable results for manufacturers and testing laboratories.

Product Introduction

Electrical safety regulations stipulate that even slight loosening of plug pins can lead to serious reliability issues. The Hongce Plug and Socket Tester is specifically designed to evaluate the firmness and stability of plug pins under standardized mechanical stress conditions.

This tester features a robust stainless steel construction and is designed according to IEC standards. It simulates the forces experienced by plug pins in real-world applications, ensuring that products meet stringent safety requirements before being released to the market.

As an original manufacturer, Hongce not only provides high-quality equipment but also reliable technical support and long-term service guarantees.

Features

Stainless steel construction for durability and precision
Accurate weight-based force application system (4N–50N range)
Single test station with stable mechanical structure
Plug pin clamp unit ensures secure and repeatable testing
Customizable gauges for different plug standards

International Standards

IEC 60884-1
Clause 24.10 – Mechanical strength of plug pins
Figure 30 – Test setup and method

Parameters with Plug Socket Tester:

Test station	1 station
Test weight	50N1, 20N2, 30N1, 4N1
Gauges	provide 6A plug gauge, 10A plug gauge, 16A plug gauge, one each
Socket	The socket plate should be made according to specific country's plug and socket requirements.

IEC 60884 Plug Socket Tester for Plug Pin Retention Strength Testing | Stainless Steel Plug Firmness Test Equipment 0

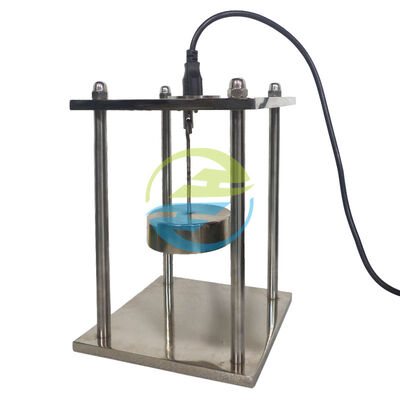

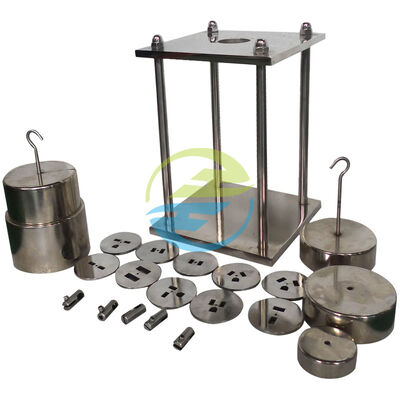

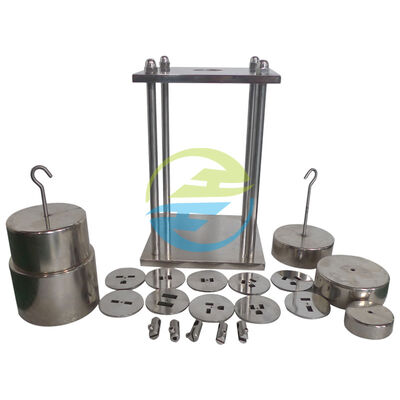

Picture View with Plug Socket Tester:

IEC 60884 Plug Socket Tester for Plug Pin Retention Strength Testing | Stainless Steel Plug Firmness Test Equipment 1

FAQ

Q1: Can it test different plug standards?

Yes, gauges and socket plates can be customized according to different countries.
Q2: Is heating cabinet included?

The tester requires use with a heating environment as specified in IEC standards.
Q3: How is force applied?

Through calibrated weights ensuring stable and accurate force.
Q4: What is the testing result criteria?

Pin displacement must not exceed 1 mm after testing.
Q5: Can this be integrated into lab systems?

Yes, it is suitable for laboratory and production line QA environments.
