High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber

Brand Name:	HongCe
Model Number:	HC1017A
MOQ:	1set
Price:	Negotiatable
Payment Terms:	L/C,T/T,D/P
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Supply Voltage:

220V

Displacement Accuracy:

±0.5%

Deformation Accuracy:

±0.5%

Motor Power:

2kW

Weight:

145kg

Fixtures:

Two Sets

Safety Devices:

Equipped With Emergency Stop Button

Warranty:

One Year

Packaging Details:

plywood

Highlight:

10kN/20kN/50kN Tensile Strength Testing Machine

220V Universal Testing Machine

±0.5% Displacement Accuracy Material Testing Machine

Product Description

High-Precision Universal Tensile Strength Testing Machine - 10kN/20kN/50kN for Metal/Plastic/Rubber Compression & Tension Detection

Product Description

The Universal Tensile Strength Testing Machine is a high-precision testing device widely used in laboratories and industrial production. It supports tensile, compression, flexure, shear, and other mechanical property tests on a variety of materials, including metals, plastics, rubber, and composites. Its user-friendly design, compatible with international standards, ensures accurate and reliable test data every time, providing a solid foundation for scientific research and quality control.

Product Features

High-precision servo control system: Ensures stable loading and minimal error.
Versatile testing: Supports multiple mechanical tests including tension, compression, flexure, shear, and peel.
International Certification Compatibility: Complies with ASTM, ISO, and IEC standards, making it suitable for export and international testing laboratories.

International Reference Standards

ASTM D638 - Standard Test Method for Tensile Properties of Plastics
ASTM D412 - Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers--Tension
ASTM E8/E8M - Standard Test Methods for Tension Testing of Metallic Materials
ISO 527-1/2 - Plastics - Determination of Tensile Properties
IEC 60695 - Fire hazard testing standards involving mechanical stress

Technical Parameters

Item	Specification
Capacity	10 kN
Accuracy	Class 0.5
Maximum crossbeam load	20 kN
Effective force range	0.02/100-100%
Machine travel	800 mm
Test speed	0-500 mm/min
Control system	Fully digital AC servo controller
Voltage	220 V, 50 Hz

Test Items

Tensile Strength

Elongation at Break

Compressive Strength

Flexural Strength

Shear Strength

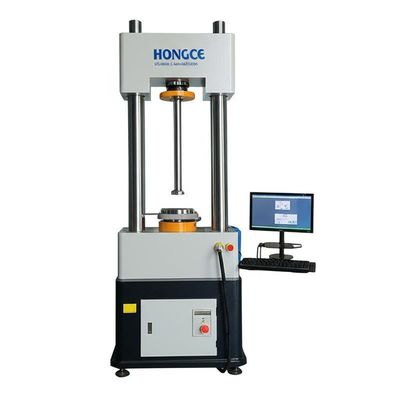

Detail Pictures
