Relay Comprehensive Parameter Test System IEC 61850 Multi-Channel Relay Test Bench

Brand Name:	HongCe
Model Number:	RTB001
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	1 Sets per 2 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Pull-in Voltage Range:

0-64V DC

Test Frequency:

40-120Hz (adjustable)

Protection Function:

Overload/short Circuit/temperature Alarm

Working Temperature:

-10℃~50℃

Power Input:

AC220V ±10%, 50/60Hz

Dimensions:

800×1100×1560mm (width×depth×height)

Packaging Details:

Plywood

Product Description

Relay Comprehensive Parameter Test System IEC 61850 Multi-Channel Relay Test Bench

Product Introduction:
The relay comprehensive parameter test system is a core device designed for the diversified testing needs of relays. It not only meets the performance verification of traditional electromechanical relays, but also can be adapted to high-voltage DC relay testing in scenarios such as smart grids and electric vehicle charging piles. Through the touch-screen intelligent interface and automated testing process, the complexity of manual operation is significantly reduced, and the testing efficiency is improved by more than 60%. Whether it is laboratory research and development or production line batch testing, it can protect the safety and reliability of every connection with accurate data and stable performance.

Product features:
Multi-channel intelligent testing: supports multi-channel synchronous output, can test multiple groups of relay parameters at the same time, and meet the needs of complex scenarios.

High-precision sensor technology: contact resistance measurement accuracy of ±0.1%, arcing time resolution ≤1ms, ensuring data reliability.

Fully automated process: supports abnormal simulation, adapts to IEC 61850 protocol digital protection device.

Humanized interactive design: 10.4-inch touch screen + graphical operation interface, reduces learning costs and improves user experience.

Safety protection upgrade: built-in overload protection, temperature monitoring and arc isolation functions to ensure safe operation.

Flexible scalability: compatible with resistive, capacitive, and inductive loads, supports customized upgrades to 400A/750VDC high-voltage testing.

International reference standards:
IEC 61850 Specification for communication and system architecture of smart substations
IEC 60664-1 High-voltage DC relay insulation coordination standard
DL/T 860 Substation communication network and system (equivalent to IEC 61850)
GB/T 7261-2008 Basic test methods for relay protection devices
IEC 60255-24:2001 Common format for transient data exchange in power systems

Technical parameters:

Parameter Item	Specification
Rated voltage	48V DC (adjustable range 36-64V)
Maximum load current	400A (supports upgrade to 450V/750VDC)
Number of test channels	12 synchronous outputs (customizable)
Contact resistance accuracy	≤1.5mΩ (±0.1%)
Arc time resolution	1ms

Test objects:
High-voltage DC relays (electric vehicles, charging piles)
Electromechanical/solid-state relays (industrial control)
Digital protection relays (smart substations)

Product images:

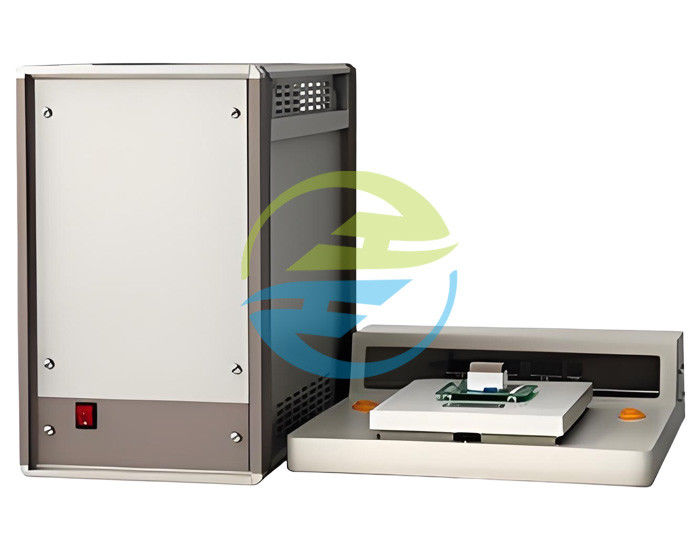

Relay Comprehensive Parameter Test System IEC 61850 Multi-Channel Relay Test Bench 0
