Tensile Strength Testing Machine
Created with Pixso.

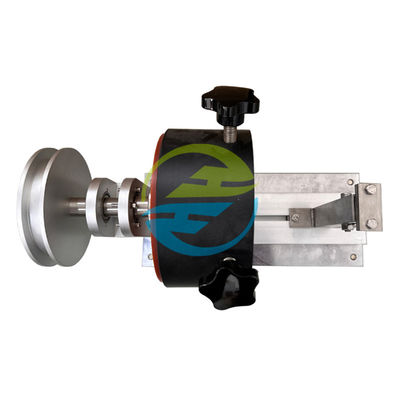

Flexible Cable Torque Testing Machine Torque 0.10Nm Tensile Strength Testing Machine

Flexible Cable Torque Testing Machine Torque 0.10Nm Tensile Strength Testing Machine

Brand Name: HongCe
Model Number: HC9918
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 30 set per month
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Frame:
Stainless Steel
Clamp:
Adjustable
Torque Arm:
0.05m
Conforms To Standard:
IEC60884.1, VDE0620
Torque:
0.10 Nm
Dimension (mm):
W*D*H=390*320*180
Packaging Details:
Plywood
Product Description

Flexible Cable Torque Testing Machine Torque 0.10Nm Tensile Strength Testing Machine



Product introduction:Product Introduction
HC9918 soft cable torque test device has become a powerful assistant in the field of soft cable testing with its advanced design and reliable performance. It simulates the torque scenarios in actual use and conducts rigorous tests on soft cables to ensure that the products meet safety standards and provide strong support for product quality and market competitiveness.





Product Features

  • The ergonomically designed 100mm torque disc, with an intuitive mechanical counting system, enables one-button intelligent operation, greatly reducing the operating threshold, so that even novices can quickly get started.
  • Equipped with five-level weights of 2N, 3N, 5N, 7N and 8.5N, it can easily achieve 0.1-0.425N.m torque coverage to meet the diverse testing needs of plugs and sockets of different specifications.
  • Strictly refer to global core safety standards such as GB2099.1-2008 and IEC60884 to ensure that the test results are authoritative and credible, helping products to enter the international market without obstacles.



Standard with Tensile Strength Testing Machine:

GB/T 2099.1-2021 Clause 23.2 and Table 18

IEC 60884-1:2022 Clause 23.2 Table 21

Compatible with safety certification systems in Europe, America, Japan and other countries



Product Use

  • Soft cable durability assessment: simulates the torsional stress in actual use scenarios, detects the wear resistance of cable sheaths and terminals, and provides data support for product durability.
  • Power cord safety certification: ensures that products comply with international safety regulations, avoids safety hazards caused by loose cords, and safeguards product safety certification.
  • R&D optimization support: helps companies improve cable structure and connection processes and enhance product performance through accurate data feedback.



Test sample with Tensile Strength Testing Machine:

For detachable plug, detachable portable socket



Parameters with Tensile Strength Testing Machine:

Frame Stainless steel
Clamp adjustable
Torque arm 0.05m
Weight 2N
Torque 0.10 Nm
Dimension (mm) W*D*H=390*320*180
Conforms to standard IEC60884.1, VDE0620



Torque test value of rope anchorage :



Rating of plug or

portable socket-outlet

Flexible cable

(number of cores × nominal cross-sectional area in mm2 )

2×0.5 2×0.75 3×0.5 3×0.75 (2 or more)×1
Up to and including 16 A and 250 V 0.10 Nm 0.15 Nm 0.15 Nm 0.25 Nm 0.25 Nm
16 A and above 250 V - - - - 0.35 Nm
Above 16 A - - - - 0.425 Nm

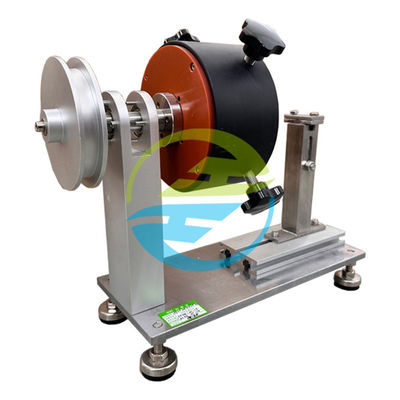

Flexible Cable Torque Testing Machine Torque 0.10Nm Tensile Strength Testing Machine 0

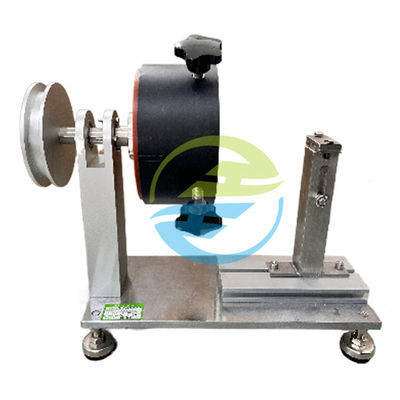

Flexible Cable Torque Testing Machine Torque 0.10Nm Tensile Strength Testing Machine 1



Each test is a pledge to safety; every data set, a proclamation of quality. HC9918 isn’t merely a testing machine but a trusted companion throughout your product’s lifecycle. Let’s harness the warmth of technology to measure safety’s reach.
