Horizontal And Vertical Combustion Tester 0.1MPa Gas Pressure 50W/500W Dual Power IEC 60695 Compliant

Name: Horizontal And Vertical Combustion Tester 0.1MPa Gas Pressure 50W/500W Dual Power IEC 60695 Compliant
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HVF-3
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HVF-3
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Burning Angle:

0°,20°,45°adjustable

Test Flame:

50W And 500W

Gas Pressure:

0.1MPa

Flame Height Gauge:

304 Stainless Steel

Application:

Fire Hazard Testing

Test Sample:

Plastic

Standard:

IEC60695

Chamber Dimension:

＞0.75 Cube

Packaging Details:

Plywood

Highlight:

500W dual power combustion tester

IEC 60695 combustion tester

0.1MPa gas pressure combustion tester

Product Description

Horizontal and vertical combustion tester | 0.1MPa gas pressure | 50W/500W dual power | IEC 60695 compliant

Product Introduction

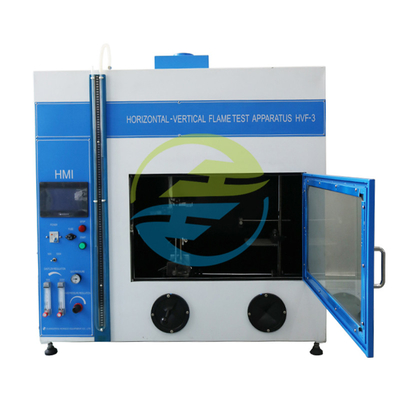

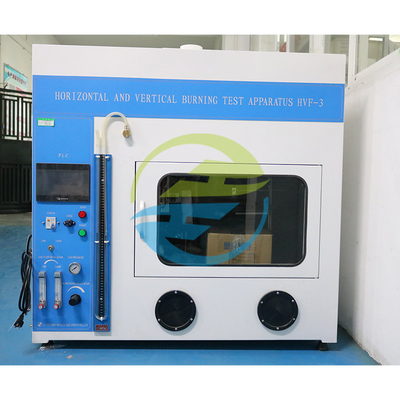

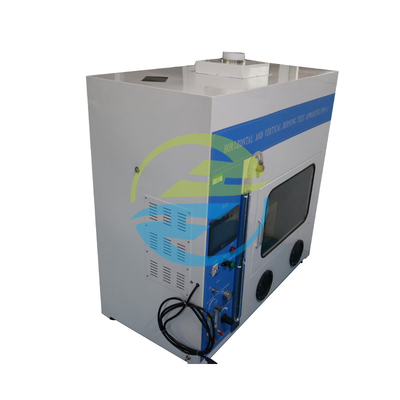

The HVF-3 horizontal vertical combustion device is a precision device designed for testing the combustion performance of materials. It can simulate the combustion conditions in the real environment and accurately evaluate the flame retardant properties of materials. With its high-precision test results and user-friendly operation interface, this device provides strong support for material science, product quality control and safety certification.

Product Use
HVF-3 horizontal vertical combustion device is widely used in the following professional fields:
• Material Science: Evaluate the combustion characteristics of new materials and provide data support for research and development.
• Quality Control: Perform combustion performance testing on finished products during the production process to ensure that the products meet safety standards.
• Product Certification: Provide necessary test data for products to meet various international and domestic certification requirements.
• Safety Compliance: Ensure the safety of products during transportation, storage and use to avoid potential fire risks.

Product Features
• Precise control: 0°, 20°, 45° adjustable burning angles to ensure test accuracy.
• Dual power selection: supports 50W and 500W test flames to meet different test needs.
• User-friendly interface: 7-inch color touch screen operation simplifies the operation process and improves work efficiency.
• Data recording: Automatically save test data for subsequent analysis and traceability.
• Durable design: Made of high-quality 304 stainless steel to ensure long-term stable operation of the equipment.

Technical Parameters

Parameters	Details
Working Voltage	220V/50Hz
Power/Grade	HVF - 1: 50W or 500W; HVF - 2, HVF - 3 (Touch Screen): Dual power switching of 50W and 500W
Control Operation Mode	HVF - 1, HVF - 2: Electric control, button operation; HVF - 3 (Touch Screen): PLC control, 7-inch color touch screen operation, with infrared remote control

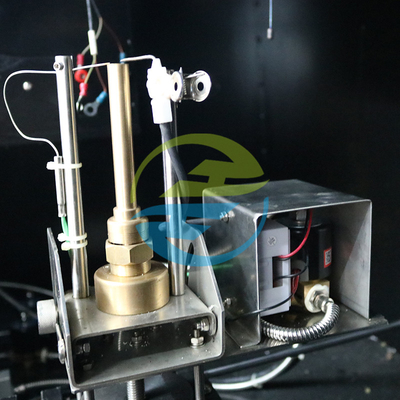

Burner Standard	Complies with IEC60695 - 11 - 3/IEC60695 - 11 - 4/10, UL94 standards, with an inner diameter of Φ9.5±0.3mm, a length of 100mm, and made of brass
Gas Pressure	0.1MPa
Gas Flow	50W: 105±5ml/min or 18±1mm; 500W: 965±30ml/min or 117±3mm, adjustable by a flow meter
U-shaped Pressure Gauge Back Pressure Water Column Height	50W: 10mm; 500W: 125±5mm
Test Angle	50W: 0°, 45°; 500W: 20°
Burning Time	0 - 9999×0.1S can be preset
Burning Times	0 - 9999 times can be preset
Afterflame/Afterglow Time	0 - 9999×0.1S can be displayed
Test Flame Calibration	50W: Temperature measuring copper head is Ф5.5mm±0.01mm, with a weight of 1.76±0.01g before drilling; 500W: Ф9mm±0.01mm, with a weight of 10±0.05g before drilling; Thermocouple is the American original Omega φ0.5 armored nickel-chromium/nickel-aluminum wire K-thermocouple with a temperature resistance of 1100°; Distance from the Bunsen burner port to the temperature measuring copper block is 10±1mm at 50W and 55±1mm at 500W; Flame height is 20±2mm (no inner and outer flame) at 50W, 40±2mm for the inner flame and 125±10mm for the outer flame at 500W; Temperature rise time from 100±2° to 700°±3° is 44±2S at 50W and 54±2S at 500W
Lighting	Equipped with lighting in the test chamber with control
Test Chamber and Dimensions	>0.75 cubic meters, with a black inner wall, an exhaust fan, and dimensions of 11005501200mm and a weight of 140kg

International Reference Standards
• IEC 60695: Flammability test standard specified by the International Electrotechnical Commission.
• UL 94: Flammability standard for plastic materials of the Underwriters Laboratories of the United States.
• GB/T 2408: Flammability performance standard for plastics of the Chinese national standard.

Summary

This is a flame tester that complies with IEC60695, with a working voltage of 220V/50Hz and power options of 50W and 500W. It adheres to multiple standards like UL94 and IEC60695 series. It's used to assess ignition hazard by simulating fire's initial flame impact on products, mainly for non-metallic materials and foam plastics. Specific samples must be tested, and results determine further evaluation. The tester features an integrated ignition system, delay for full combustion, and has various components for accurate testing and a good appearance, combining many domestic and foreign product advantages.

将文章中火焰测试仪的参数用英文表格形式展示出来

写一篇关于火焰测试仪的100字英文推文

推荐一些关于火焰测试仪的英文资料

90 / 5,000

翻译结果

Product Use The HVF-3 horizontal vertical combustion device is widely used in the evaluation of the combustion characteristics of materials such as plastics, rubber, and textiles. It is suitable for many fields such as material research and development, quality control, and product certification, helping companies and research institutions ensure the safety and compliance of their products.
