Flexible Cable Retention Tester 100N Tensile Strength Test IEC 60884-1 Single Station High Efficiency Testing

Name: Flexible Cable Retention Tester 100N Tensile Strength Test IEC 60884-1 Single Station High Efficiency Testing
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC9917
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HC9917
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Test Station:

1 Station

Test Weight:

10N*1, 60N*1, 20N*2

Test Rate:

60 Times /min

Working Stroke:

35mm

Cord Bushes:

5 Pieces

Test Times:

0-9999, Preset

Name:

Apparatus For Testing Cord Retention

Warranty:

1 Year

Packaging Details:

Plywood

Highlight:

100N Tensile Strength Tester

IEC 60884-1 Tensile Strength Tester

Flexible Cable Retention Tester

Product Description

Flexible cable retention tester 100N tensile strength test IEC 60884-1 single station high efficiency testing

Product introduction:
Make safety and efficiency within reach
HC9917 soft cable retention tester is the "safety guard" on your production line, specially designed to verify the connection reliability of wires and cables and electrical accessories. It is not only a cold test equipment, but also the guardian of your product quality - through precise tensile strength testing, it ensures that each soft cable is firmly fixed in key components such as plugs and sockets, avoiding safety hazards caused by connection failure.

International standard certification:

Your passport to the global market

IEC 60884-1 (flexible cable retention mechanical performance test)

EN 50396 (low voltage cable safety verification)

UL 1581 (American standard wire and cable durability test)

GB/T 2951.11 (Chinese national standard cable tensile test)

Product highlights:
Dual-mode precision testing: tensile strength + holding force dual test
Touch interaction revolution: 7-inch color screen presents test curves in real time
Safety protection system: overload warning + emergency braking dual protection
Modular fixture design: supports fast switching of 10+ cable specifications

Test sample with Tensile Strength Testing Machine:

Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet.

Product Parameters with Tensile Strength Testing Machine:

Power Supply	AC 220V 50Hz
Weight Configurations	10N1, 60N1, 20N*2
Testing Rate	60 times/min
Test Times	0-9999 times, preset. Default 100 times.
Cord Bushings	5 pieces (Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ16mm)
Working Stroke	35mm

The pull force to the flexible cable:

Rated Current of the Flexible Cable (A)	Rated Voltage of the Flexible Cable (V)	Tensile Force (N)
2.5	-	50
2.5~16	<250	60
2.5~16	>250	80
>16	-	100

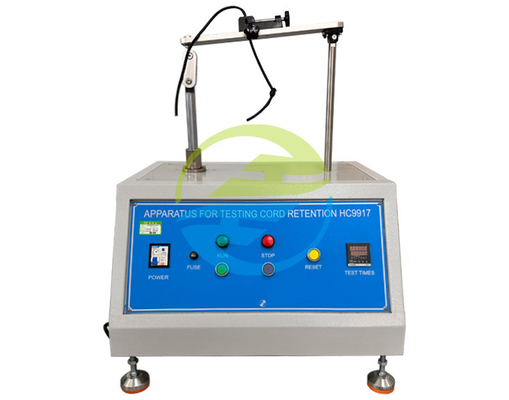

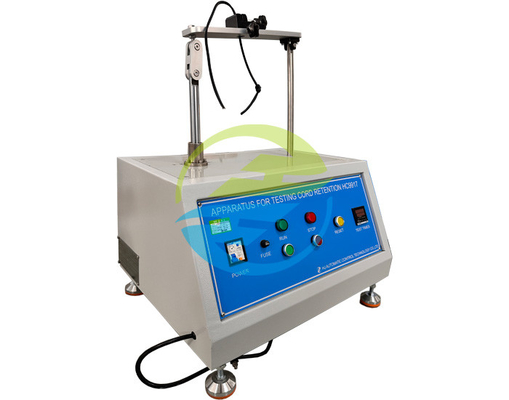

Product Image with Tensile Strength Testing Machine:

Flexible Cable Retention Tester 100N Tensile Strength Test IEC 60884-1 Single Station High Efficiency Testing 0

Flexible Cable Retention Tester 100N Tensile Strength Test IEC 60884-1 Single Station High Efficiency Testing 1

After-sales service | Your trust, our commitment

We are well aware of the importance of equipment stability to your business, so we provide:

1.24-hour technical response: a professional team of engineers is on call at any time to solve unexpected problems.

2.Lifetime maintenance plan: free replacement of non-human damaged parts during the warranty period, and repair at cost price after the warranty period.

3.Free operation training: on-site or remote guidance to ensure that your team 100% masters the skills of using the equipment.
