Touch Screen Temperature Rise Tester Professional Plug Socket Tester Accurately Detect Socket Safety Performance

Brand Name:	HongCe
Model Number:	HC9910C
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Standart:

IEC60884-1

Working Station:

Testing Current:

0-125A

Testing Voltage:

＜12V

Temperature Measuring Meter:

0-150℃ Digital Display

Test Object:

Connector

Control Method:

PLC Control

Operate Method:

Touch Screen Operation

Packaging Details:

plywood

Highlight:

Professional Plug Socket Tester

Socket Safety Performance Tester

Touch screen temperature rise tester

Product Description

Touch screen temperature rise tester | Professional Plug Socket Tester

Product introduction:
Born for socket safety, a globally trusted testing solution
The temperature rise tester (touch screen version) is a high-precision device designed for socket safety performance testing, integrating temperature rise testing, load stability verification and compliance analysis. Whether it is a household socket, industrial plug or new energy charging interface, the tester can quickly capture abnormal temperature rise, ensure that the product meets international safety standards, eliminate overheating hazards, and provide one-stop testing guarantees for manufacturers, quality inspection agencies and export companies.

Standard:

IEC 60884: General requirements for plugs and sockets for household and similar purposes

IEC 60309: Industrial plugs, sockets and couplers

IEC 60669: Switches for household and similar fixed electrical installations

UL 498: American standard socket safety certification

GB/T 2099: Chinese national standard

Application: This device is use for test the temperature rise under normal operation of electrical appliances.

Test sample: Household plugs and sockets

Product features:
Precise temperature measurement, safe and worry-free
Multi-channel high-sensitivity sensor (supports 8-channel synchronous monitoring), real-time tracking of temperature changes in key parts such as socket contacts and shells, with a resolution of ±0.1℃ to ensure data reliability.

Intelligent testing, saving time and effort
One-click start of the automated test process, preset current, voltage, duration and other parameters, and automatically generate temperature curves and compliance reports.

Hardcore and durable, flexible adaptation
Industrial protection design, anti-electromagnetic interference, support 7×24 hours continuous operation

Compliance certification, internationally accepted
The test process strictly follows authoritative standards such as IEC 60884 (household socket standard) and IEC 60309 (industrial plugs and sockets)

Parameters:

Item	HC9910C
Test channel	6 channels for independent temperature
Testing current	0-125A
Testing voltage	＜12V
Timer	0-9999s is adjustable, digital display
Temperature measuring meter	0-150℃ digital display
Power supply	220V,50HZ
standard	IEC 60998.1
Test object	connector

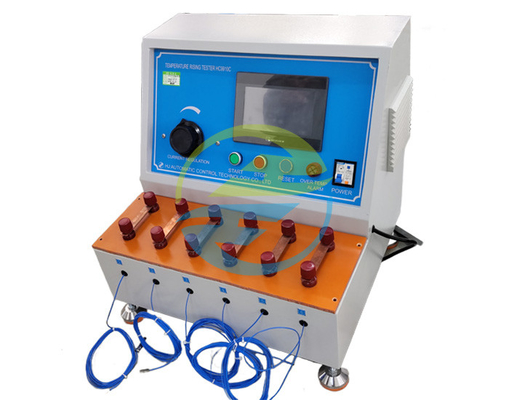

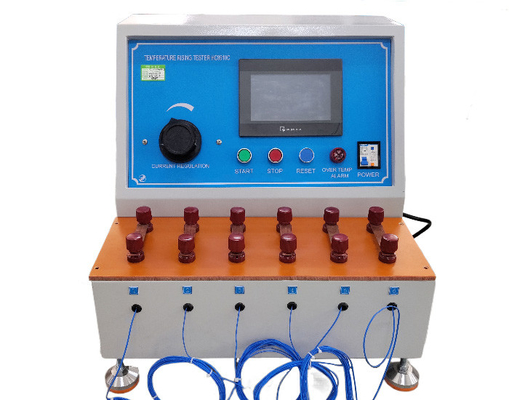

Picture for reference:

Touch Screen Temperature Rise Tester Professional Plug Socket Tester Accurately Detect Socket Safety Performance 0
