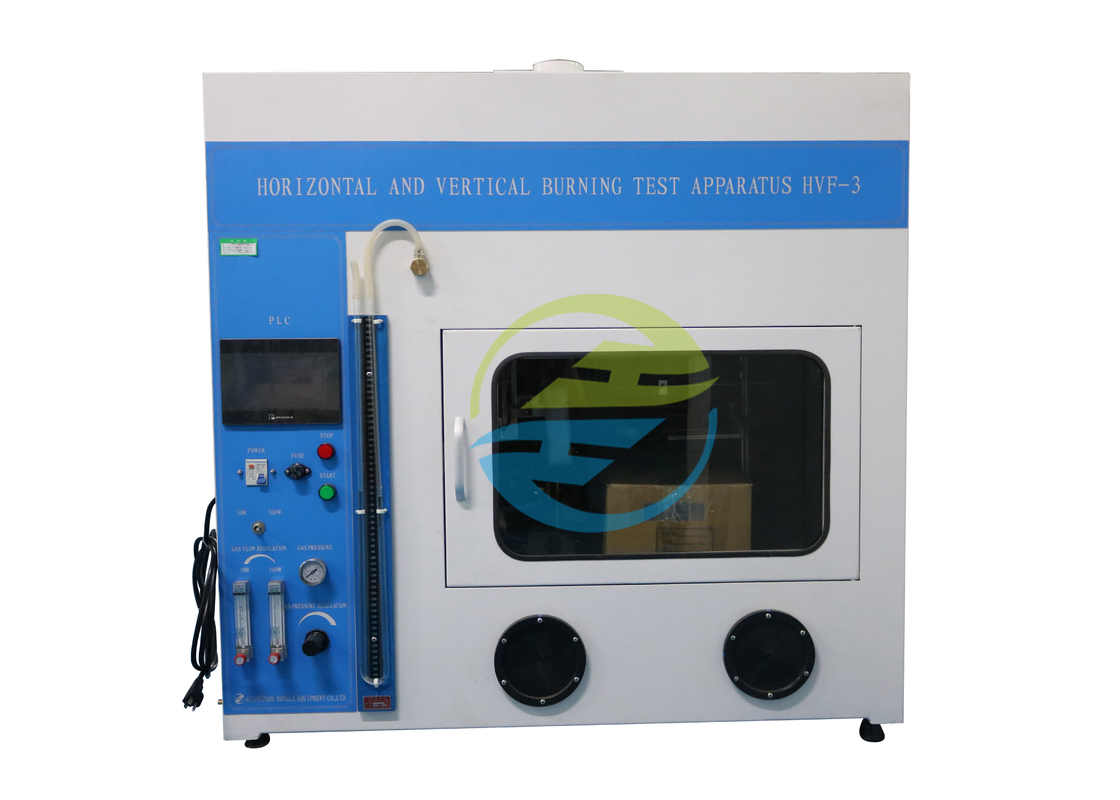

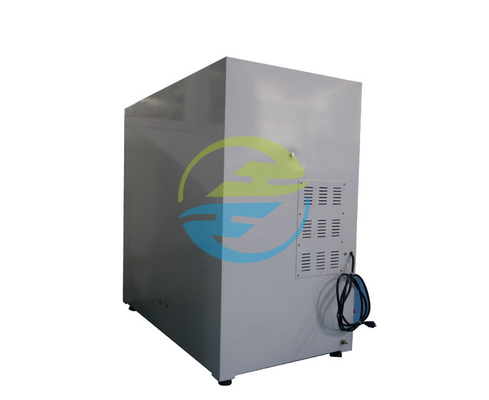

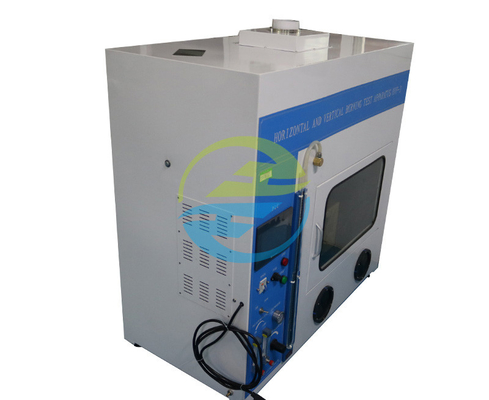

IEC60695 Compliant 220V/50Hz Horizontal And Vertical Flame Tester

IEC60695 Compliant 220V/50Hz Horizontal And Vertical Flame Tester

Brand Name:	HongCe
Model Number:	HVF-3
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Burning Angle:

0°,20°,45°adjustable

Test Flame:

50W And 500W

Gas Pressure:

0.1MPa

Flame Height Gauge:

304 Stainless Steel

Application:

Fire Hazard Testing

Test Sample:

Plastic

Standard:

IEC60695

Chamber Dimension:

＞0.75 Cube

Packaging Details:

Plywood

Highlight:

500W Horizontal and Vertical Flame Tester

Horizontal and Vertical Flame Tester

Product Description

IEC60695-compliant 220V/50Hz Horizontal and Vertical Flame Tester with 50W and 500W Power Options

This device is an IEC60695 horizontal and vertical flame tester (50W and 500W), including its applicable standards, application range, test sample requirements, equipment features, and technical parameters.

Applicable Standards

Complies with UL94, IEC60695 - 11 - 2, IEC60695 - 11 - 3, IEC60695 - 11 - 4, IEC60695 - 11 - 10, IEC60695 - 11 - 20 and other standards.

Application Range

Used to simulate the influence of the initial flame in a fire around electronic products and judge the ignition hazard degree. It is mainly used for testing non-metallic materials such as plastics and solid materials, and is also applicable for horizontal and vertical flammability testing of foam plastics with a density of not less than 250kg/m³ according to the ISO845 test method.

Test Sample Requirements

Samples without coloring, with the highest level of organic pigments, with the highest level of inorganic pigments, and with pigments known to have an adverse effect on flammability need to be tested. If the flame test classifications of the test results are the same, they can be considered representative of the color range; if different, the materials with extreme density, melt flow, and filler/reinforcement content need to be evaluated, and samples with intermediate content need to be tested to determine the representative range.

Equipment Features

Adopts an integrated air intake ignition system, with a combustion time delay of 0.1S to ensure sufficient gas combustion.
Equipped with a matte black background, a multifunctional flame measuring instrument, a full stainless steel box, a large observation window, an imported high-precision digital indicator, and has a beautiful appearance, integrating many advantages of similar products at home and abroad.

Technical Parameters

Parameters	Details
Working Voltage	220V/50Hz
Power/Grade	HVF - 1: 50W or 500W; HVF - 2, HVF - 3 (Touch Screen): Dual power switching of 50W and 500W
Control Operation Mode	HVF - 1, HVF - 2: Electric control, button operation; HVF - 3 (Touch Screen): PLC control, 7-inch color touch screen operation, with infrared remote control
Burner Standard	Complies with IEC60695 - 11 - 3/IEC60695 - 11 - 4/10, UL94 standards, with an inner diameter of Φ9.5±0.3mm, a length of 100mm, and made of brass
Gas Pressure	0.1MPa
Gas Flow	50W: 105±5ml/min or 18±1mm; 500W: 965±30ml/min or 117±3mm, adjustable by a flow meter
U-shaped Pressure Gauge Back Pressure Water Column Height	50W: 10mm; 500W: 125±5mm
Test Angle	50W: 0°, 45°; 500W: 20°
Burning Time	0 - 9999×0.1S can be preset
Burning Times	0 - 9999 times can be preset
Afterflame/Afterglow Time	0 - 9999×0.1S can be displayed
Test Flame Calibration	50W: Temperature measuring copper head is Ф5.5mm±0.01mm, with a weight of 1.76±0.01g before drilling; 500W: Ф9mm±0.01mm, with a weight of 10±0.05g before drilling; Thermocouple is the American original Omega φ0.5 armored nickel-chromium/nickel-aluminum wire K-thermocouple with a temperature resistance of 1100°; Distance from the Bunsen burner port to the temperature measuring copper block is 10±1mm at 50W and 55±1mm at 500W; Flame height is 20±2mm (no inner and outer flame) at 50W, 40±2mm for the inner flame and 125±10mm for the outer flame at 500W; Temperature rise time from 100±2° to 700°±3° is 44±2S at 50W and 54±2S at 500W
Lighting	Equipped with lighting in the test chamber with control
Test Chamber and Dimensions	>0.75 cubic meters, with a black inner wall, an exhaust fan, and dimensions of 11005501200mm and a weight of 140kg

IEC60695 Compliant 220V/50Hz Horizontal And Vertical Flame Tester 0

Summary

This is a flame tester that complies with IEC60695, with a working voltage of 220V/50Hz and power options of 50W and 500W. It adheres to multiple standards like UL94 and IEC60695 series. It's used to assess ignition hazard by simulating fire's initial flame impact on products, mainly for non-metallic materials and foam plastics. Specific samples must be tested, and results determine further evaluation. The tester features an integrated ignition system, delay for full combustion, and has various components for accurate testing and a good appearance, combining many domestic and foreign product advantages.
