| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9908 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 days (in stock) |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 set per month |
| Balancing Arm: | 0-250mm | Test Station: | 1 Station |
|---|---|---|---|
| Test Weight: | 2.5N | Operating Method: | By Manual |
| Distance Between Contact Surface And Axial Surface: | 8mm | Configuration: | Universal Socket (suitable For GB And BS Plugs), Optional UL Socket And Australian Socket. |
| Highlight: | Manual Plug Socket Tester,IEC60884-1 Plug Socket Tester,Torque Test Device |
||
IEC60884-1 0-250mm Balance Arm Test weight 2.5N Plug Socket Tester Torque Test Device
Standard with Plug Socket Tester:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 14.23.2
Standard description with Plug Socket Tester:
The torque test device of the plug and socket tester is inserted into a fixed socket complying with this standard, and the socket is rotated about a horizontal axis passing through the axis of the live socket contacts, parallel to the mating surface of the socket at a distance of 8 mm behind the mating surface.
The additional torque which has to be applied to the socket-outlet in order to maintain the engagement face in the vertical plane shall not exceed 0.25 N.
Application with Plug Socket Tester:
This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
Test sample with Plug Socket Tester:
Fixed socket-outlet, plug-in equipment.
Feature with Plug Socket Tester:
This device has the advantages of good sensitivity, easy adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixture, strong practicality.
Parameters with Plug Socket Tester:
| Distance from the contact surface and the Axis of the surface | 8mm |
| Balancing arm | 0-250mm |
| Weight | 2.5N, can achieve 0.25Nm to 0.4Nm torque force |
| Configure | all-purpose plug(suit for GB and BS plug), UL plug, European plug, one each |

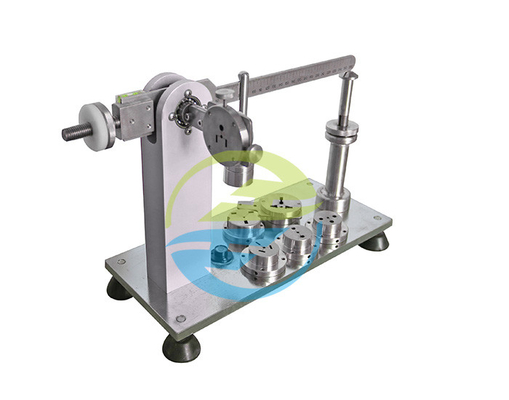

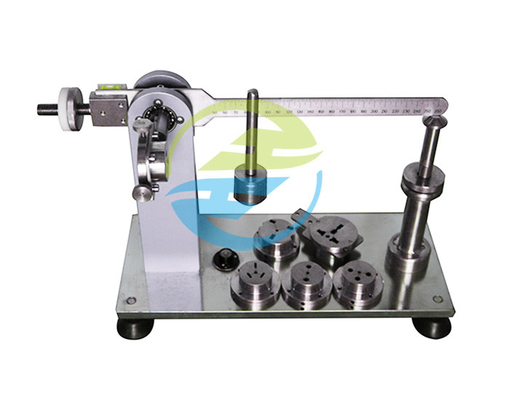

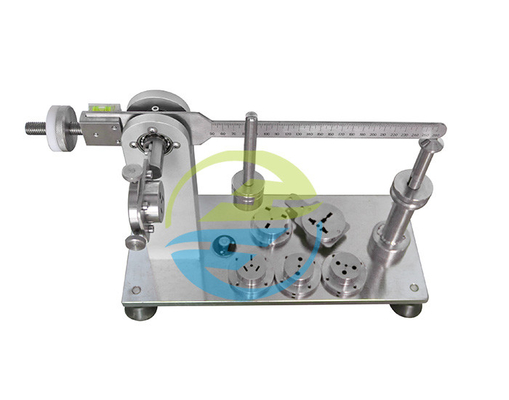

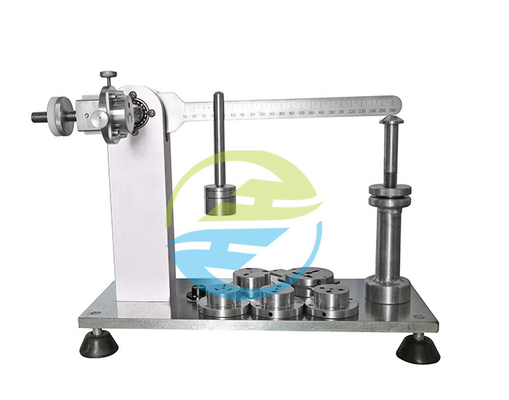

Product details with Plug Socket Tester:
Our advantage service:
We have our own development and design team to ensure that we provide customers with products with our own technology and innovation.
For any customers who have new ideas for some products, just tell us and we can provide unique product designs according to your ideas.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. The company has introduced advanced equipment, combined with the most advanced production process, and a strict quality control system to control the entire production process. The company has a group of high-tech management talents and advanced equipment, adopts modern management, computer design and control, and its products have reached the international advanced level. The company integrates R&D, design, production and sales, specializing in the production of plug and socket wire testing equipment, electronic product mechanical strength testing equipment, electronic product fire hazard testing equipment, anti-electric shock and anti-solid foreign body intrusion test indicators, general testing equipment, and other non-standard testing equipment. The products are sold well at home and abroad, and have established supply relationships with many well-known companies.
