Tensile Strength Testing Machine With Soft Cable Retention Force Test Rate 60 Times /min Testing Machine

Brand Name:	HongCe
Model Number:	HC9917
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Test Station:

1 Station

Test Weight:

10N*1, 60N*1, 20N*2

Test Rate:

60 Times /min

Working Stroke:

35mm

Cord Bushes:

5 Pieces

Test Times:

0-9999, Preset

Name:

Apparatus For Testing Cord Retention

Warranty:

1 Year

Packaging Details:

Plywood

Highlight:

Soft Cable Retention Force Testing Machine

Soft Cable Tensile Strength Testing Machine

Product Description

Soft Cable Retention Force Testing Machine

Standard with Tensile Strength Testing Machine:

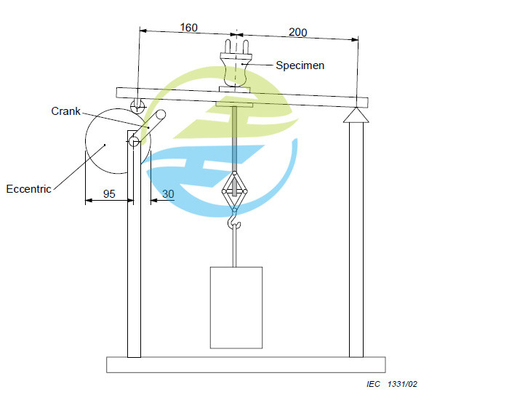

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 23.2, figure 20

Application with Tensile Strength Testing Machine:

It is used to test rewireable plugs and rewireable portable sockets, which should be equipped with power cord fixtures to protect the conductors from stress (including twisting) when connected to the terminals and to protect their coverings from abrasion. After the test starts, the machine starts automatically and stops working after reaching the set number of times.

Test sample with Tensile Strength Testing Machine:

Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet.

Product Parameters with Tensile Strength Testing Machine:

Power Supply	AC 220V 50Hz
Weight Configurations	10N1, 60N1, 20N*2
Testing Rate	60 times/min
Test Times	0-9999 times, preset. Default 100 times.
Cord Bushings	5 pieces (Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ16mm)
Working Stroke	35mm

The pull force to the flexible cable:

Rated Current of the Flexible Cable (A)	Rated Voltage of the Flexible Cable (V)	Tensile Force (N)
2.5	-	50
2.5~16	<250	60
2.5~16	>250	80
>16	-	100

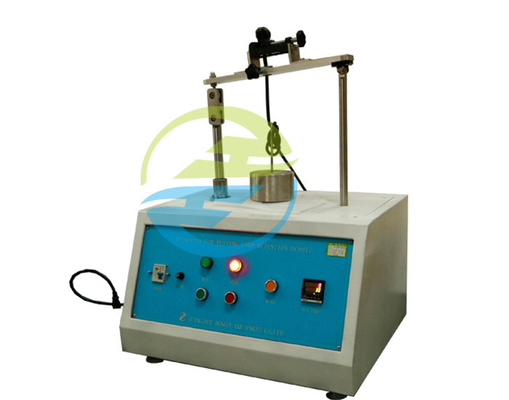

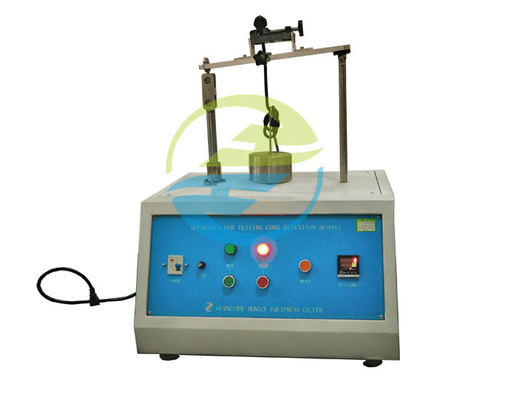

Product Image with Tensile Strength Testing Machine:

Tensile Strength Testing Machine With Soft Cable Retention Force Test Rate 60 Times /min Testing Machine 0
