Load Weight 100N Non Solid Pin Testing Device For Plug Socket Tester

Load weight 100N Non Solid Pin Testing Device for Plug Socket Tester

Product Introduction with Plug Socket Tester:

The appliance is checked by the test of IEC60884-1clause 24, figure 14, for checking pins which are not solid whether can withstand the sufficient hardness.

Product Parameters with Plug Socket Tester:

Operation Steps with Plug Socket Tester:

1. When using the instrument for the first time, horizontal position adjustment is needed, first place the tester in a horizontal table, and adjust the four feet of the tester, until the horizontal bubble is in the center position.

2. A force of 100 N is exerted on the pin, which is supported as shown in figure 14, last 1 min in a direction perpendicular to the axis of the pin, the force is applied by theΦ4.8 mm steel rod, the axis of which is also perpendicular to the axis of the pin.

3. During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0.15 mm.

4. After removal of the rod, the dimensions of the pin shall not have changed by more than 0.06 mm in any direction,

5. The equipment should be cleaned and maintained after completing the test.

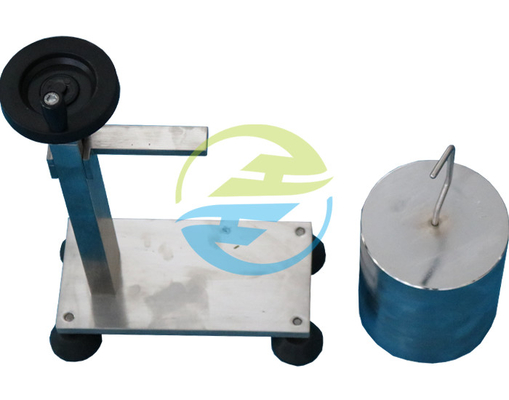

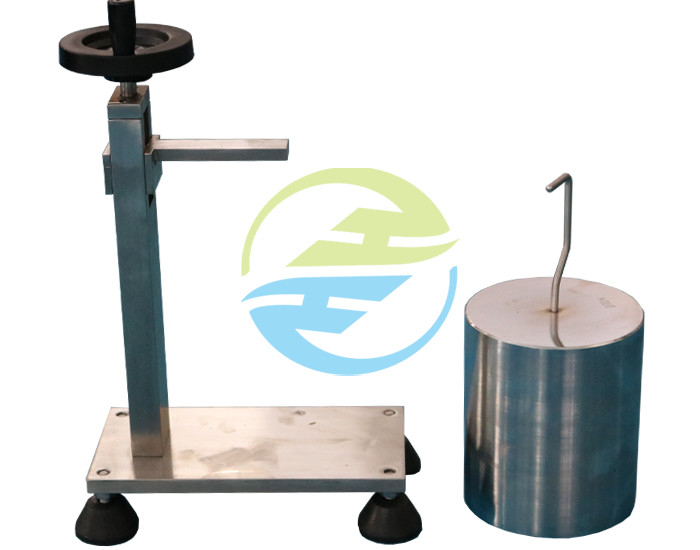

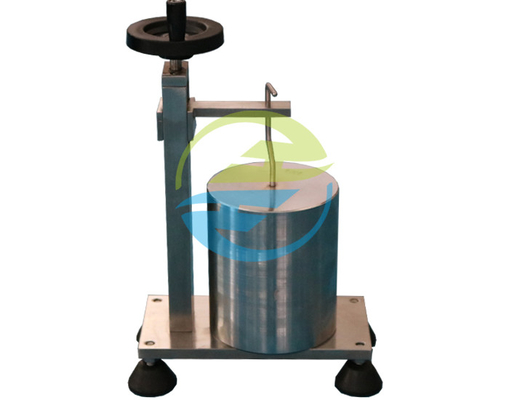

Product Image wtih Plug Socket Tester:
