| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9924 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Test Stations: | 1 Station | Impact Hammer: | 1000±2g And 100±1g |
|---|---|---|---|
| Impact Height: | 100mm | Support Thickness: | 40mm |
| Standard: | IEC60884-1 24.4 Figure 27, IEC60884-1 30.4 Figure 42 | Operation: | Manual, Mechanical Release |
| Steel Support Thickness: | 40mm, Weight:10±1kg | Steel Intermediate Piece: | Φ20, Bottom End Rounded R300, 100g |
| Highlight: | Low Temperature Impact Testing Machine,Mechanical Release Impact Testing Machine,Single Station Impact Testing Machine |
||
Single Station Apparatus For Impact Test At Low Temperature Mechanical Release with Impact Testing Machine
Standard with Impact Testing Machine:
The test apparatus is for impacting test at low temperature confirms to the standard of IEC60884 clause 24.4 and 30.4 figure 27 and figure 42.
Application with Impact Testing Machine:
This equipment is used to test the low temperature impact resistance of plugs, sockets, switches, wires, electrical conduits, wires, cables, etc.
Test sample with Impact Testing Machine:
Electrical accessories, surface type mounting boxes, screw glands, covers, wires and cables etc.
Product Feature with Impact Testing Machine:
This device should be used with low temperature chamber, the device should be placed on the sponge rubber pad of about 40mm thick, and should be put in the low temperature chamber before and during the test.
Product Parameters with Impact Testing Machine:
| Station | Single station |
| Weight of the impact hammer (g) | 1000±2 and 100±1 |
| Height of the impact (mm) | 100 |
| Steel intermediate piece | Φ20, bottom end rounded R300, 100g |
| Steel support thickness | 40mm, weight:10±1kg |
| Standard |
IEC60884-1 24.4 Figure 27 IEC60884-1 30.4 Figure 42 |
| Operation | Manual, mechanical release |

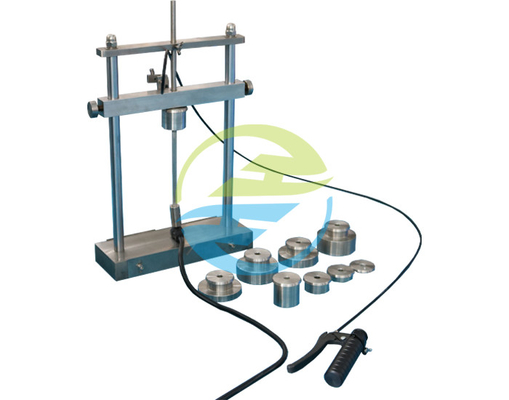

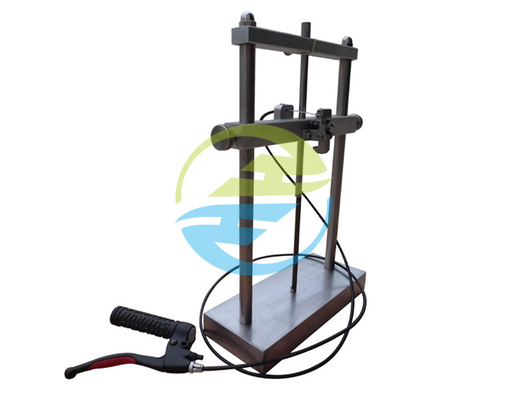

Product Image with Impact Testing Machine:
