Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D

Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D

  • Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D
  • Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D
  • Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D
Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9915D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Power Supply: Single-phase AS200V±10% 50Hz For User-provided Test Samples Voltmeter: 0~300V ± 0.25% Reading + 0.25% Range, Digital Display
Ammeter: 0~30A ± 0.25% Reading + 0.25% Range, Digital Display Power Meter: 0.30~0.999, Digital Display
High Light:

300V Plug Socket Tester

,

20A Plug Socket Tester

,

Self Ballast Plug Socket Tester

Self Ballast Lamp Load Box



Standard with Plug Socket Tester:

IEC 60669-1 2004 clause 19.3b



Application with Plug Socket Tester:

This device is suitable for breaking capacity and normal operation life test to fixed switches for house held and similar purpose, especially suitable for self ballast lamp switch electric stress and thermal stress test when control the LED circuit. To verify whether the switch can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.



Test sample with Plug Socket Tester:

Self Ballast Lamp(SBL) Switches



Feature with Plug Socket Tester:

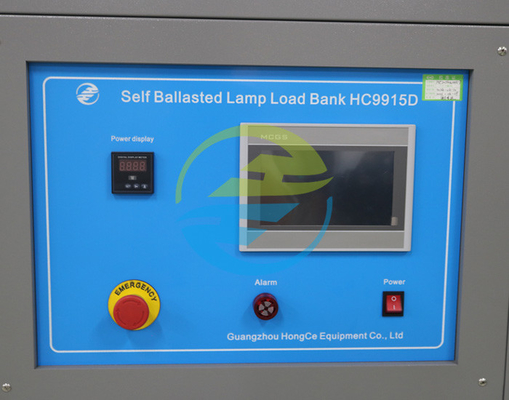

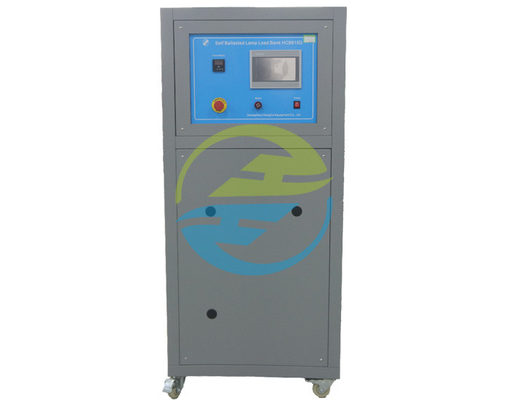

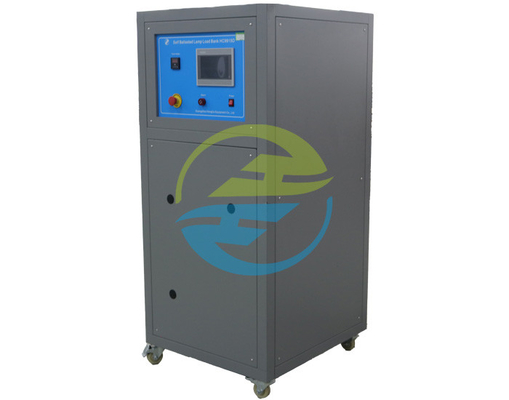

Dimension about: wide (710mm) * Deep (620mm) * high (1710mm). The front side of the operation control panel, the panel is made of high quality aluminum through etching, sand blasting, coloring process, beautiful and durable. With power control switch, current, voltage, power, power factor meters, load power output switch, indicator lamp, current output and stop button, alarm, capacitance gear selection switch, current gear selection switch on the panel. With resistor and capacitor load combination, AC contactor, relay, heat using strong wind flow cooling built inside. With connecting post on the bottom, which is connected with the products and the testing machine through a conducting wire, output current and load to the product during test.



Parameter

Power Supply Single-phase AS200V±10% 50Hz for user-provided test samples
Voltmeter 0~300V ± 0.25% reading + 0.25% range, digital display
Ammeter 0~30A ± 0.25% reading + 0.25% range, digital display
Power Meter 0~9KW, accuracy 0.5, digital display
Power Factor Meter 0.30~0.999, digital display
Output Channel 1 channel
Output Current Maximum 20A, automatic cutoff above 22A
Output Voltage Maximum 300V, automatic cutoff above 350V
Capacitance Value Selection 180/310/355/480/600uF settings, selectable
Surge Circuit Meets the requirements of 230/400V distribution system in Table Xa
R2, C Values in Load Circuit Based on the corresponding values for 230V in Table Xb
Current Duration Maximum 10 seconds
R1 Resistance Range: 0.1 to 4
R2 Resistance Value Selectable from 1.25/0.8/0.7/0.59/0.53 settings
R4 Resistance Range: 0.5 to 70
Counter Presettable from 0 to 999999 times, with alarm at set count





Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D 0Maximum Output Current 20A Voltage 300V Self Ballast Lamp Load Box Plug Socket Tester HC9915D 1
