Pneumatic Switch Plug Plug Socket Tester

Pneumatic Switch Plug Plug Socket Tester

  • Pneumatic Switch Plug Plug Socket Tester
  • Pneumatic Switch Plug Plug Socket Tester
  • Pneumatic Switch Plug Plug Socket Tester
  • Pneumatic Switch Plug Plug Socket Tester
Pneumatic Switch Plug Plug Socket Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: CNAS, TUV, ITS, CSA, BV, SGS
Model Number: SOL-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Standard: IEC61058-1 / IEC60884-1 Drive Mode: Servo Motor
Control System: PLC Workstation: 6
Item: Parameters Power Supply: AC220V±10%/50Hz Or 110V/60Hz
High Light:

electric socket tester


electrical plug tester

Pneumatic Switch Plug Socket Tester IEC61058-1 / IEC60884-1 , Linear Mode



Products Introduction:


This testing machine is according to IEC61058.1,IEC60884 and IEC60669.1 standards to design, it is suitable for household and similar fixed electrical installations switch capacity and normal operating life test. Its aim at checking the switch whether is able to withstand the mechanical damage and electrical fatigue damage in normal use, and if there are adhesion phenomena or prolonged closed or disconnected phenomena occur, inspect whether there are excessive wear and other harmful consequences with it. It is the special equipment for switch mechanical life machine and electrical life endurance tester.

The equipment can do button switches, rocker switches, push and pull switches and plug sockets life test. Equipped with load (resistive, inductive, capacitive) to do load test, and equipped with corresponding control system.

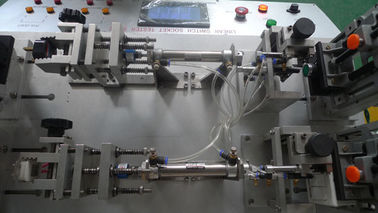

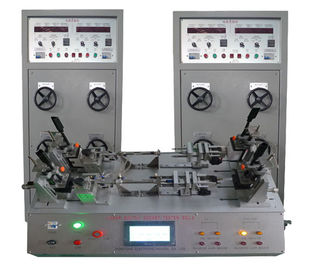

The device uses spray steel and sandblasted aluminum frame to manufacture ​​with elegant appearance. By a pneumatic drive, seven-inch color touch-screen human nature operation and strong digital capabilities, PLC control system, test times, the on time current time, the off time, load selection can be preset, user can choose manual control. There are 4-stations, 1 and 2 station are used to perform switch test (rocker switches and push button switches can switch test), 3 and 4 station are used to perform the plug and socket testing. When the switch is due to adhesion, out of order lead to disconnect, there will be a fault alarm and record the corresponding number of experiments, it will alarm when get to the required times; when an alarm occurs, the test stops automatically. This complete machine with elegant appearance, practical and easy to operate, it is an essential laboratory instrument for the quality inspection departments, R&D institution to test the safety performance of related household products.


Technical Parameters:






Power supply

AC220V±10%/50Hz or 110V/60Hz

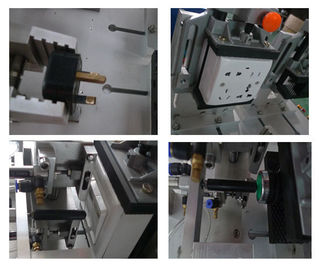

4 stations,1 and 2 station are used to perform switch test

(rocker switches and push button switches can switch test),

3 and 4 station are used to perform the plug and socket testing

All 4 workstation can work independently


Operation interface

7-inch Color LCD touch screen


Drive mode



Control Systems

PLC Control


Preset times

0~999999s, can be preset


Test times

Displays the current number of trials


The on time

0~99.9s, can be preset



The off time

0~99.9s, can be preset


Travel time

Mechanical adjustment, take the cylinder’s maximum stroke position


Test rate

Adjustable valve, about 0.2S / times


Atmospheric pressure



Environment temperature



Relative Humidity



Working place

No violent shaking, vibration, electromagnetic interference, no dust,

Non-explosive and corrosive gases, good heat dissipation


Dimensions and weight




Pneumatic Switch Plug Plug Socket Tester 0

The required load box (need to buy seperately)
