Flexible Cable Plug Socket Tester

Brand Name:	HongCe
Model Number:	CR-6
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate

Standard:

IEC60884Figure 20, VDE0620

Work Station:

Test Rate:

60 Times/min

Weight:

10N*1, 60N*1, 20N*2

Power Supply:

220V 50Hz Or 110V 60Hz

Test Times:

1~9999, Adjustable. 100 Is By Default

Packaging Details:

Plywood

Highlight:

electric socket tester

electrical plug tester

Product Description

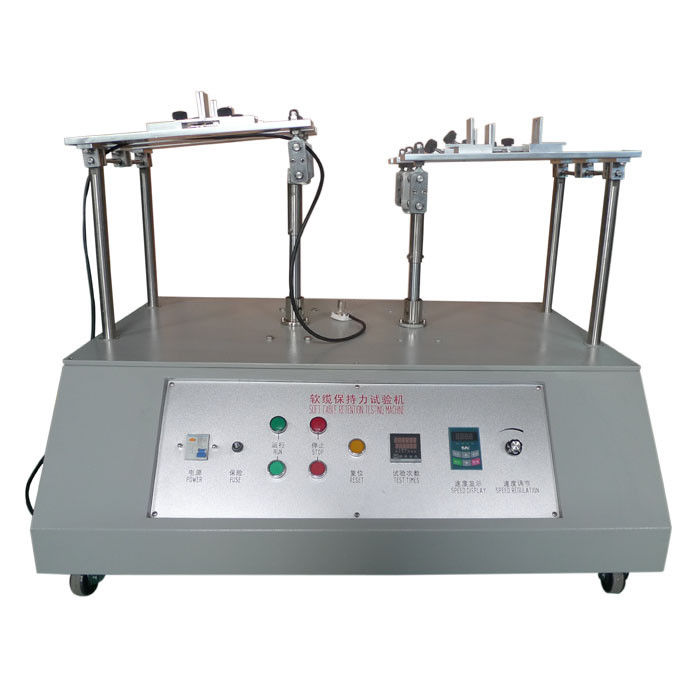

Flexible Cable Cord Retention Force Test Apparatus IEC60884 Figure 20 , VDE0620

Product details:

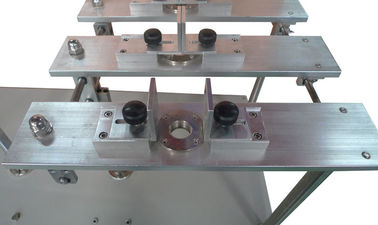

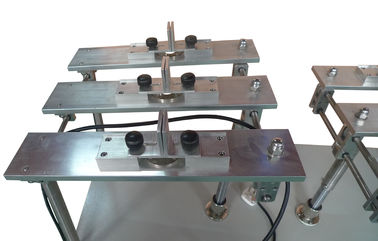

HongTong has customzied a 6 workstations flexible cable cord retention test apparatus, it well meets our customer's special testing requirements.

The cord retention test apparatus is designed and manufactured according to the standard requirement of IEC60884 figure 20. It is used to test cord retention and check the effectiveness of the retention of the cable and cord anchorage.

Technical parameters:

Power Supply	220V 50Hz or 110V 60Hz
Test times	1~9999, adjustable. 100 is by default.
Test rate	60 times/min
Weight	10N1, 60N1, 20N*2
Standard	IEC60884Figure 20, VDE0620

Test method:
The cord anchorage is used in the normal way, clamping screws, if any, being tightened with a torque equal to two-thirds of that specified in standard. After reassembly of the specimen, the component parts shall fit snugly and it shall not be possible to push the flexible cable into the specimen to any appreciable extent. The specimen is placed in the test apparatus so that the axis of the flexible cable is vertical where it enters the specimen.

The according tensile force of the flexible cable:

The rated current of the flexible cable(A)	The rated voltage of the flexible cable(V)	The tensile force
2.5	—	50
2.5～16	<250	60
2.5～16	>250	80
>16	—	100
