IEC60884-1 Figure 44 Pressure Test Apparatus High Temperature For Pin With Insulating Sleeves

Brand Name:	HongCe
Model Number:	HC9936
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Standard:

IEC 60884-1: 2022

Test Station:

Applied Force:

2.5N

Rectangular Blade:

Width 0.7mm

Round Blade:

φ6mm*0.7mm

Material:

Stainless Steel

Packaging Details:

Plywood

Highlight:

Figure 44 Pressure Test Apparatus

Pressure Test Apparatus With Insulating Sleeves

Product Description

IEC60884-1 Figure 44 Apparatus For Pressure Test At High Temperature for Pin With Insulating Sleeves

Standard of Apparatus For Pressure Test At High Temperature:

IEC 60884-1:2022 Plugs and socket-outlets for household and similar purposes - Part 1: General requirements clause 30.2 and Figure 44.

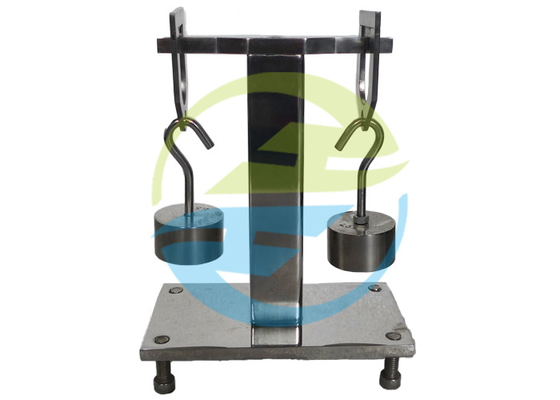

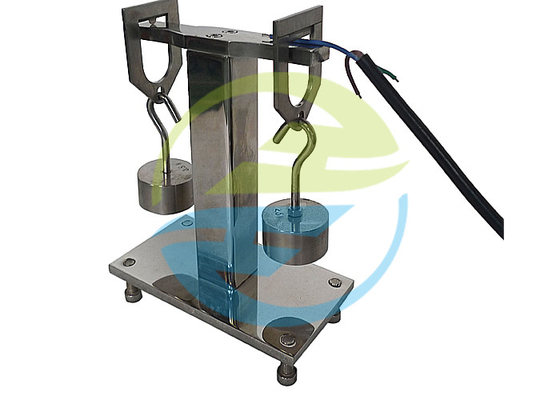

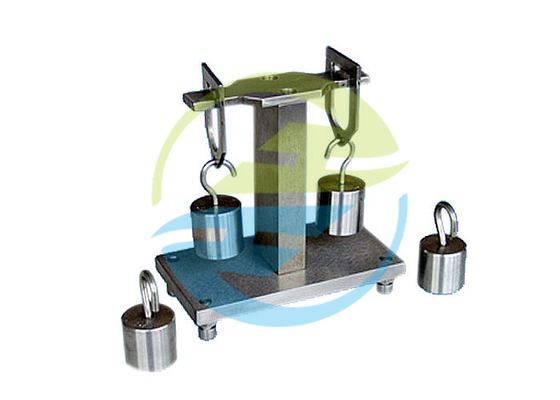

IEC60884-1 Figure 44 Pressure Test Apparatus High Temperature For Pin With Insulating Sleeves 0

Function Of Apparatus For Pressure Test At High Temperature:

The specimens are tested by means of the apparatus shown in Figure 44. This apparatus has a rectangular blade (see Figure 44 a)) with an edge 0.7 mm wide, to be used in the case of round pins or, for all other types of pins, a blade having a round shape (see Figure 44 b)), with a diameter of 6 mm and an edge of 0.7 mm is used.

The specimens are placed in position as shown in Figure 44.

The force applied through the blade is 2,5 N.

The apparatus, with the specimen in position, is maintained for 2 h in a heating cabinet at a temperature of (200 ± 5)°c.

Technical Parameters of Plug Socket Tester:

The force applied through the blade	2.5N
Station	2
Weight	2.5N*2(it can be customized)
Rectangular blade	Edge 0.7 mm wide
Round blade	Diameter of 6 mm and an edge of 0.7 mm
Inside heating cabinet temperature	(200±5)℃
Texture	stainless steel
Standard	IEC60884-1
