Impact Testing Machine
Created with Pixso.

Falling Ball Impact Testing Equipment SBD-2 IEC60598.1 IEC60950.1

Falling Ball Impact Testing Equipment SBD-2 IEC60598.1 IEC60950.1

Falling Ball Impact Testing Equipment SBD-2 IEC60598.1 IEC60950.1

Brand Name: HongCe
Model Number: SBD-2
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 15 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Product Name:
Falling Ball Impact Testing Machine
International Standard:
IEC60598.1 / IEC60950.1
Size:
500*500*2100mm
Power Supply:
220V,2A
Ball Material:
Stainless Steel Round Ball
Packaging Details:
Plywood
Highlight:

Falling Ball Impact Testing Equipment

,

IEC60950.1 Impact Testing Equipment

Product Description

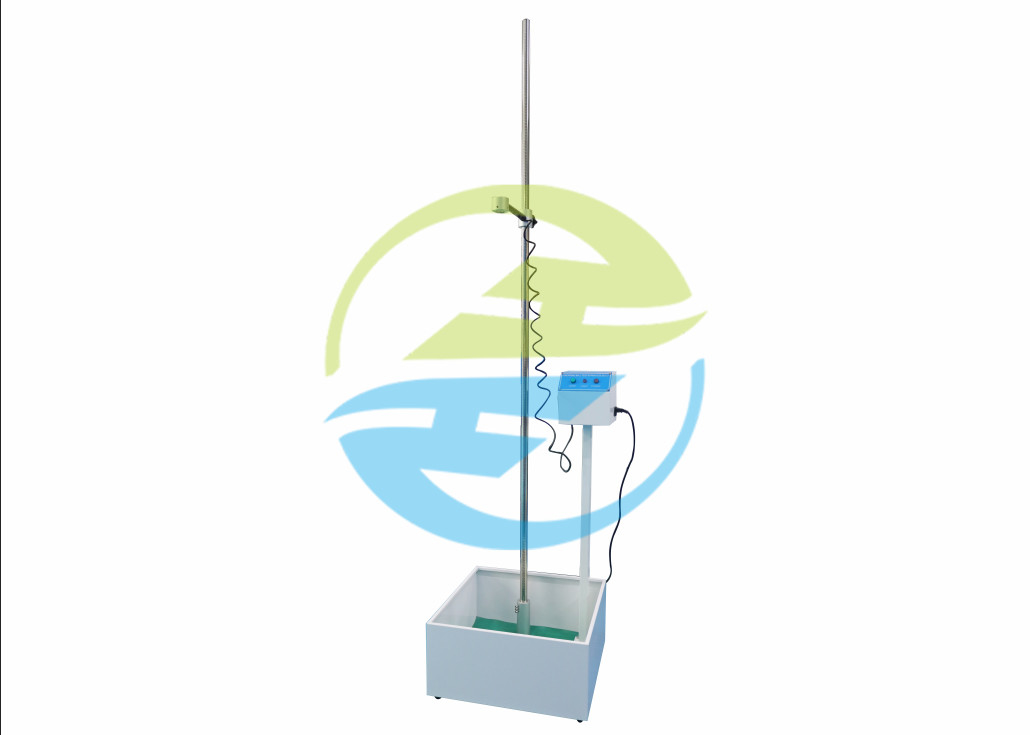

Dropping Ball Test Apparatus Impact Testing Machine



Product details:

This testing device confirms to the standards of IEC60598.1 and IEC60950.1. It is applicable for the impact performance test of the equipment enclosure. It has the advantages of accurate performance and convenient operation as well as reasonable layout. Adjusted to a certain height, the steel ball, whose weight is required, falls down to hit the testing sample. Then the tester can judge the quality of the sample according to the damage degree of the testing sample. It can be used in the fastness test of the enclosure with the material of plastic, ceramic, acryl and Glass fiber.



Technical parameters:

NO. key parameter

numerical value


1 The impact steel ball 50,100,200,500,,2000g(It can be customized.)
2 The controlling way of the dropping ball it is controlled by the direct current electromagnetism
3 The height of the dropping ball 0-2000mm is adjustable
4 Size 500*500*2100mm
5 Weight 80kg



The dropping way:

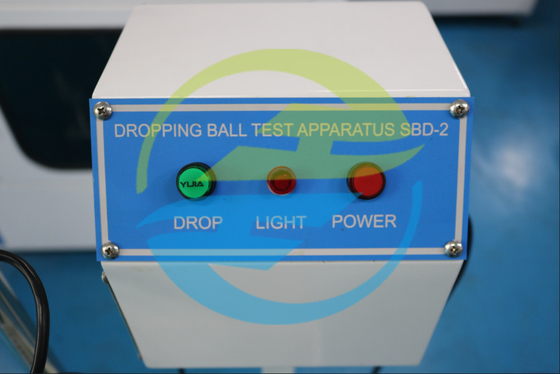

The device is controlled by the direct current electromagnetism. Place the steel ball under the magnetic chuck and then the ball will be sucked. When push the button of the “drop”, the ball will be released immediately. Thus the ball will hit the sample. The height of dropping can be adjusted and can be measured by the altitude scale attached.



Falling Ball Impact Testing Equipment SBD-2 IEC60598.1 IEC60950.1 0



About us:



HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
