5N Socket Lateral Strain Resistance Test Device IEC60884 Figure 13

5N Socket Lateral Strain Resistance Test Device IEC60884 Figure 13

Brand Name: HongCe
Model Number: LS-1
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 set per month
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Standard:
IEC60884 Figure 13
Lifting Heavy Weights:
5N
Test Samples:
Sockets
Test Plug:
GB6A,GB10A,GB16A
Packaging Details:
Plywood
Highlight:

material test machine

,

compression test equipment

Product Description

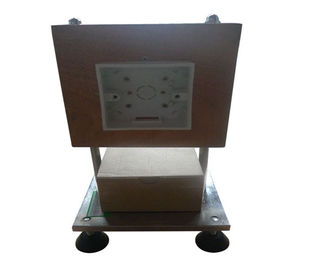

5N Socket Lateral Strain Resistance Test Device IEC60884 Figure 13





Product overview:



The device for checking the resistance to lateral strain conforms to the standard of IEC884 figure 13. It is suitable for checking socket of rated current is ≤ 16A and the voltage is ≤ 250V.



Test principle:



To check whether there will be any damage to the socket in the standard sense when the electrical appliances insert to the socket and give it transverse stress.





Technical parameters:



1, It is equipped with test plug of GB6A two-plug plug, GB10A three-plug, GB16A three-plug plug.

2, Lifting heavy weights:5N.



Standard IEC60884 Figure 13
Lifting heavy weights 5N
Test samples socket of rated current is ≤ 16A and the voltage is ≤ 250V
